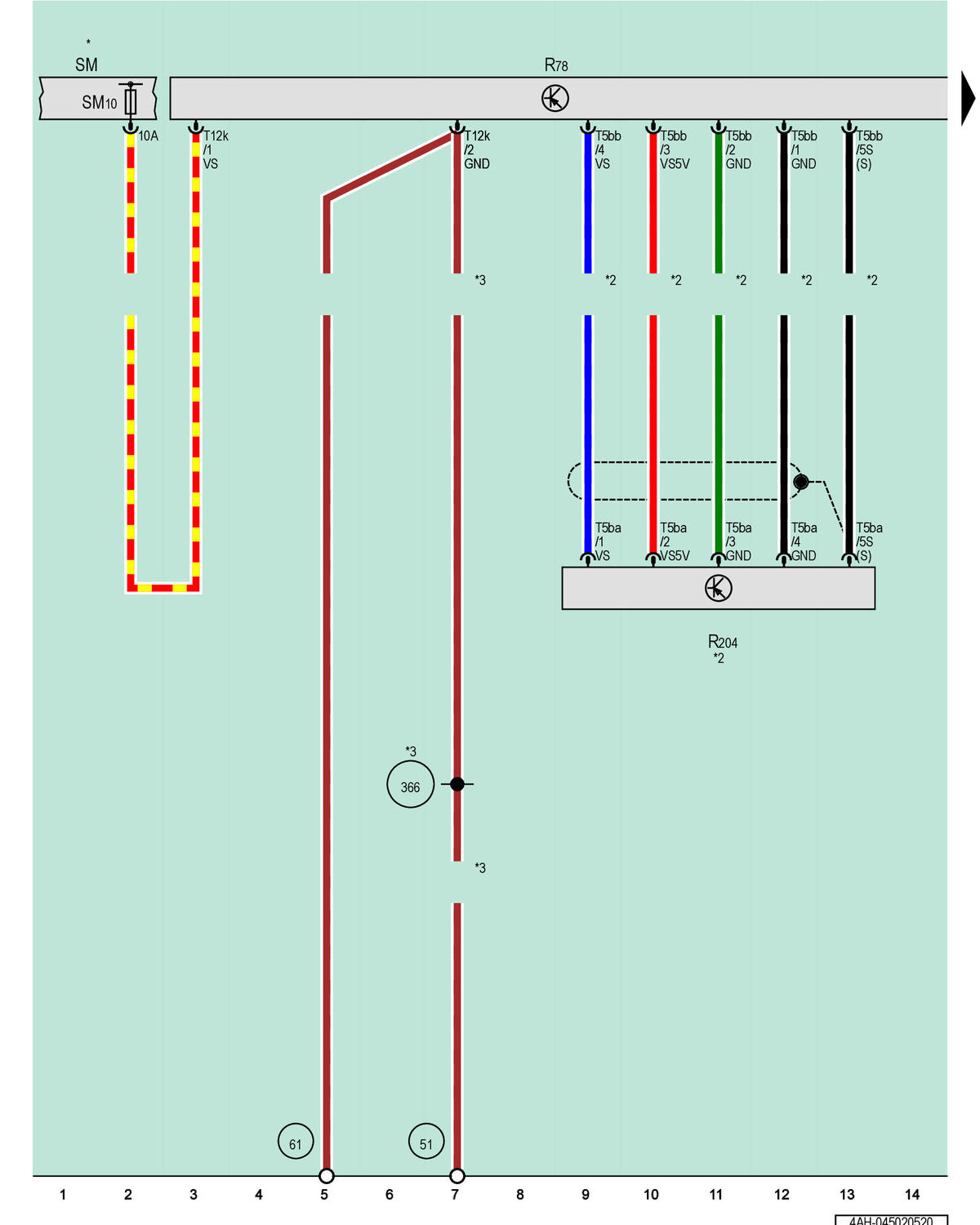

TV Tuner, TV Card Reader

Courtesy of AUDI OF AMERICA, LLC

R78

TV Tuner

R204

TV Card Reader

SM

Fuse Panel M

SM10

Fuse 10 on Fuse Panel M

T5ba

5-Pin Connector, Blue

T5bb

5-Pin Connector, Blue

T12k

12-Pin Connector, Black

51

Ground Connection in Luggage Compartment, Right

61

Ground Connection on Left C-Pillar

366

Ground Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Optional Equipment

*3

For Vehicles with Hybrid Drive
