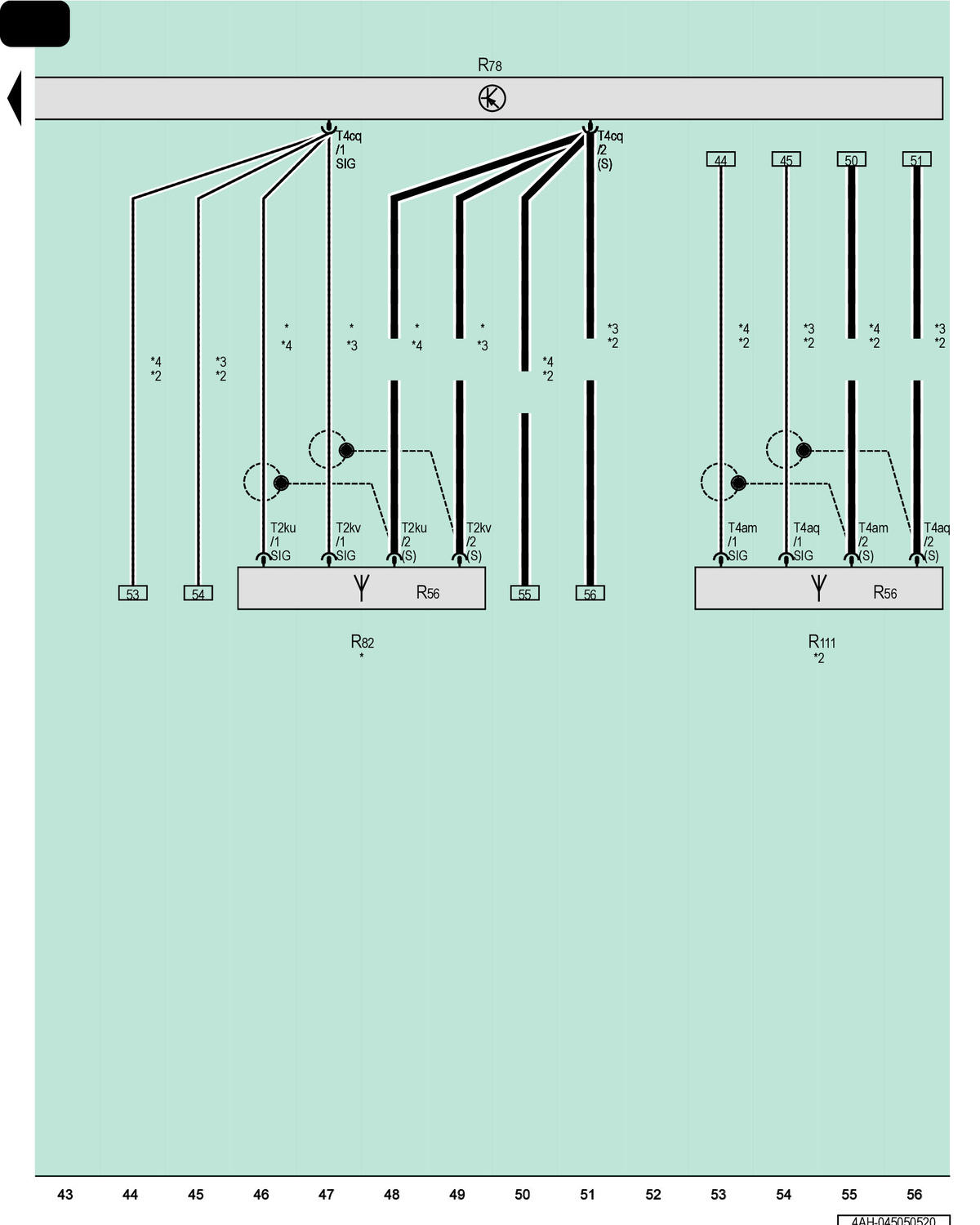

TV Tuner, TV Antenna Amplifier 1, Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

R56

TV Antenna 2

R78

TV Tuner

R82

TV Antenna Amplifier 1

R111

Antenna Amplifier 2

T2ku

2-Pin Connector, Green

T2kv

2-Pin Connector, Brown

T4am

4-Pin Connector, Purple

T4aq

4-Pin Connector, Blue

T4cq

4-Pin Connector, Green

*

Sedan

*2

Avant

*3

For Vehicles with Japan Equipment

*4

For Vehicles Without Japan Equipment
