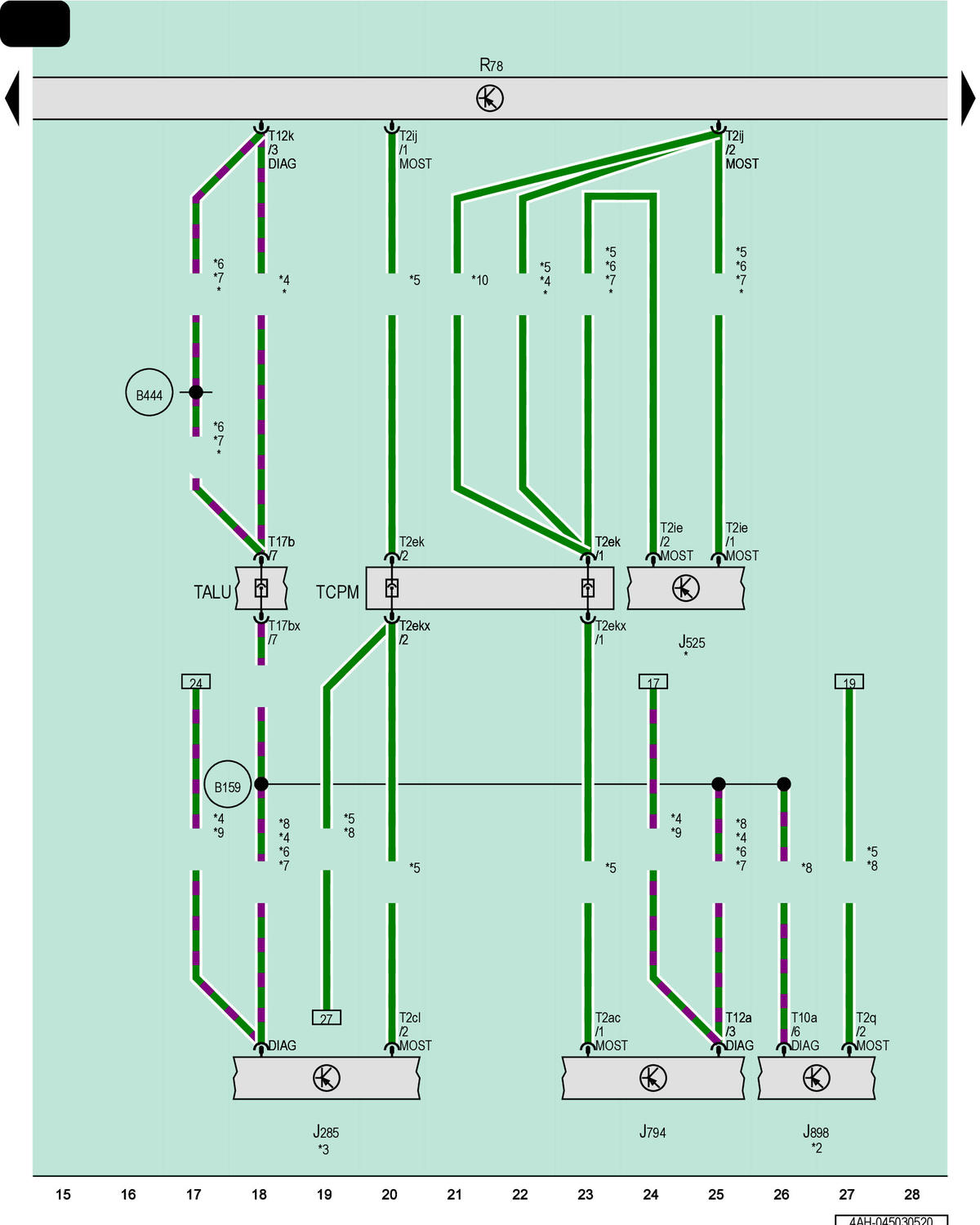

Instrument Cluster Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

R78

TV Tuner

T2ac

2-Pin Connector, Black

T2cl

2-Pin Connector, Black

T2ek

2-Pin Connector, Black

T2ekx

2-Pin Connector, Black

T2ie

2-Pin Connector, Black

T2ij

2-Pin Connector, Black

T2q

2-Pin Connector, Black

T10a

10-Pin Connector, Black

T12a

12-Pin Connector, Gray

T12k

12-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

TCPM

Coupling Point on Instrument Panel, Center

B159

Diagnostic Connection (in Interior Wiring Harness)

B444

OBD Connection 1 (in Main Wiring Harness)

*

Through June 2020

*2

Refer to Applicable Windshield Projection Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Instrument Cluster

*4

For Vehicles with Standard Sound System

*5

Fiber Optic Cable

*6

For Vehicles with Bang & Olufsen Sound System

*7

For Vehicles with Bose Sound System

*8

For Vehicles with Windshield Projection

*9

For Vehicles with MMI

*10

From June 2020
