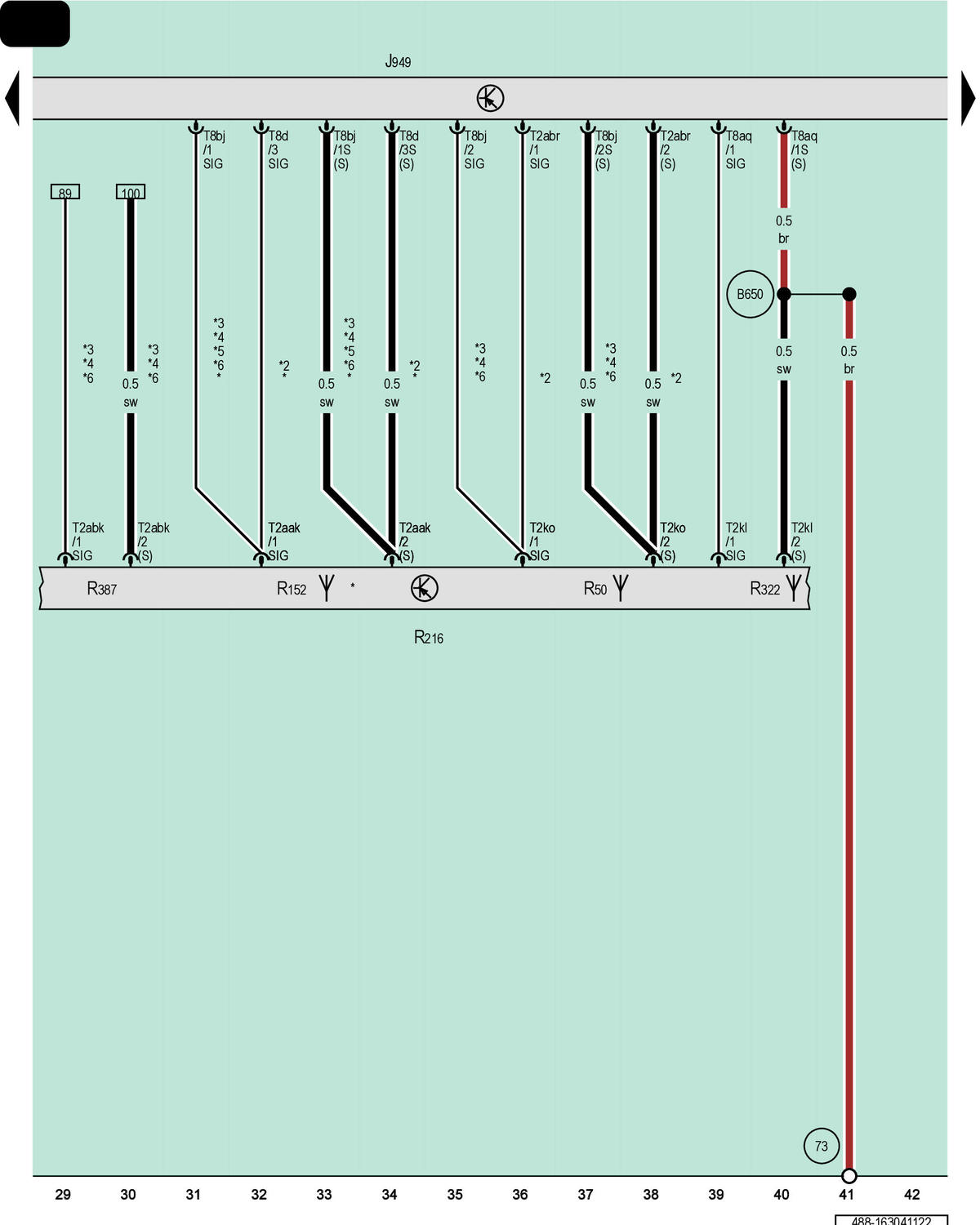

Control Module For Emergency Call Module And Communication Unit, Roof Antenna

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R50

GPS Antenna

R152

Bluetooth Antenna

R216

Roof Antenna

R322

Emergency Call Module Antenna 2

R387

Antenna for External Communication with Vehicle

T2aak

2-Pin Connector, Black

T2abk

2-Pin Connector, White

T2abr

2-Pin Connector, Pink

T2kl

2-Pin Connector, Purple

T2ko

2-Pin Connector, Blue

T8aq

8-Pin Connector, Black

T8bj

8-Pin Connector, Blue

T8d

8-Pin Connector, White

Ground Connection on Rear Roof Bow

B650

Connection 8 (in Interior Wiring Harness)

For Vehicles with Cell Phone/Telephone

For Vehicles Without External Vehicle Communication

For Vehicles with China Equipment

From December 2021

For Vehicles Without Radio-Controlled Parking

For Vehicles with External Vehicle Communication
