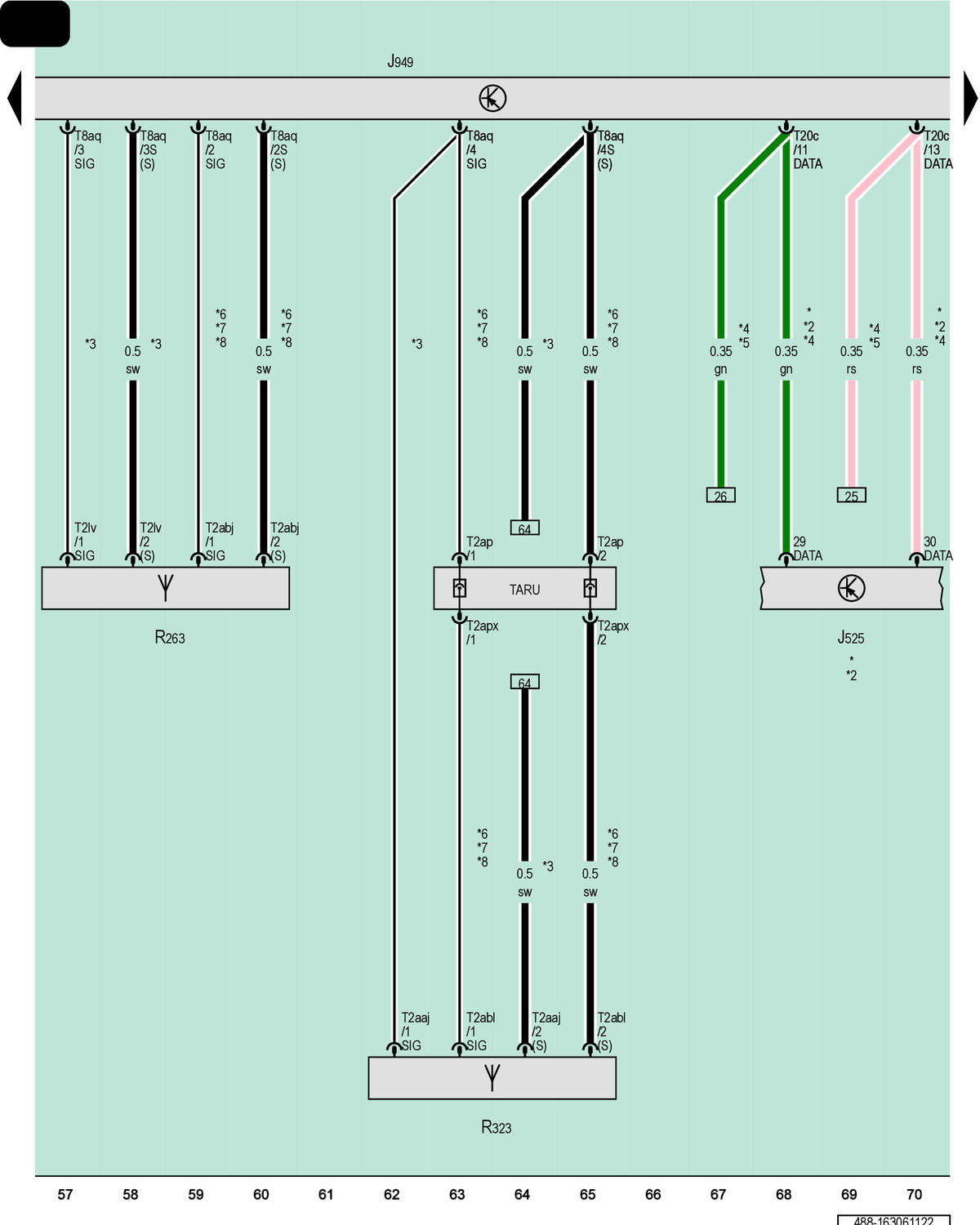

Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Antenna, Emergency Call Module Antenna 3
J525
Digital Sound System Control Module
J949
Control Module for Emergency Call Module and Communication Unit
R263
Emergency Call Module Antenna, Behind the Right Rear Bumper
R323
Emergency Call Module Antenna 3
T2aaj
2-Pin Connector, Purple
T2abj
2-Pin Connector, Black
T2abl
2-Pin Connector, Black
T2ap
2-Pin Connector, Black
T2apx
2-Pin Connector, Black
T2lv
2-Pin Connector, Purple
T8aq
8-Pin Connector, Black
T20c
20-Pin Connector, Naturally Cloudy
TARU
Coupling Point on Right A-Pillar, Bottom
*
Refer to Applicable Sound System Wiring Diagram
*2
For Vehicles with an Amplifier
*3
For Vehicles Without External Vehicle Communication
*4
Audio Bus Data Bus Wire
*5
For Vehicles Without an Amplifier
*6
For Vehicles with China Equipment
*7
From December 2021
*8
For Vehicles with External Vehicle Communication
