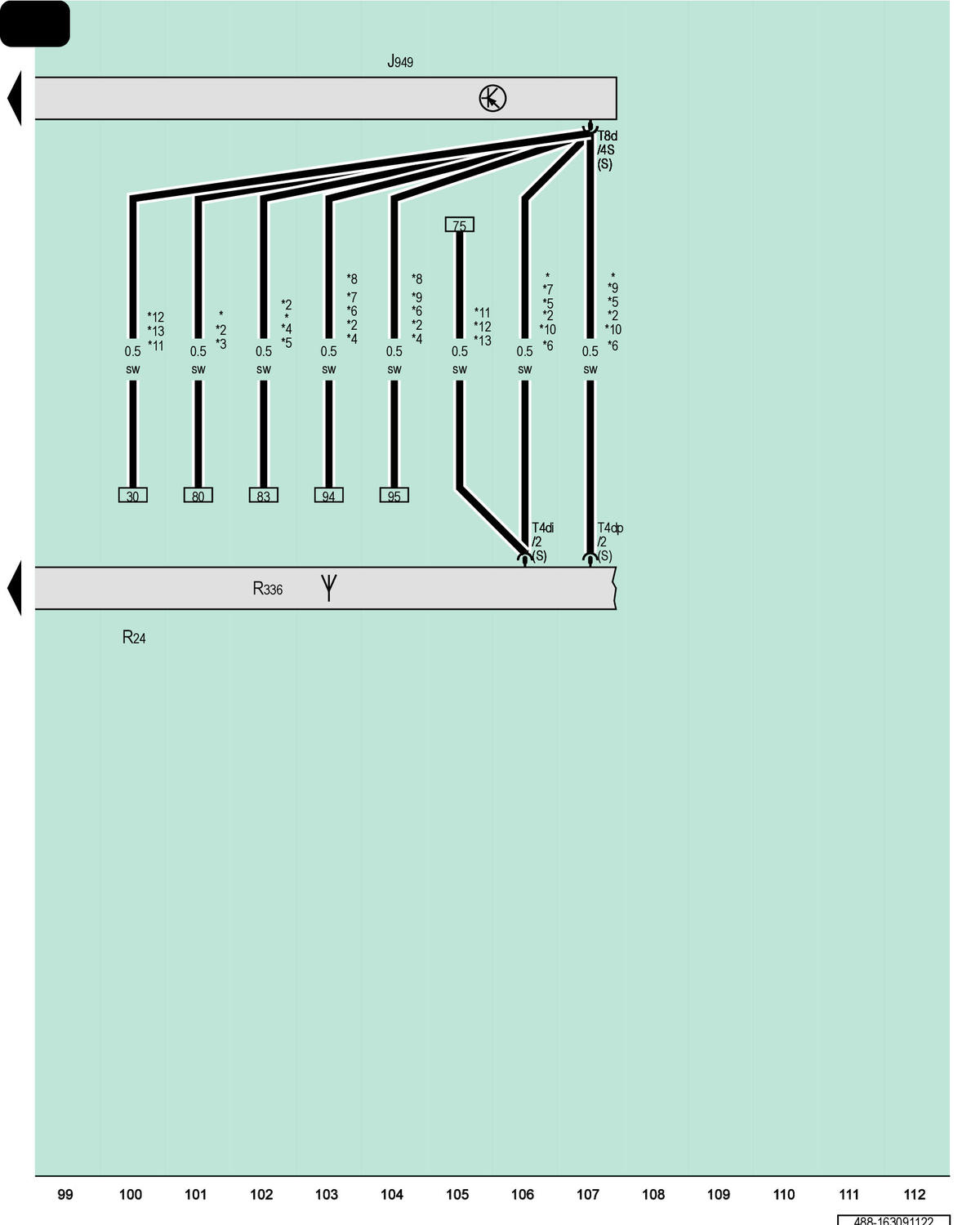

Control Module For Emergency Call Module And Communication Unit, Antenna Amplifier

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R24

Antenna Amplifier

R336

Wireless Data Transfer Antenna

T4di

4-Pin Connector, Gray

T4dp

4-Pin Connector, Yellow

T8d

8-Pin Connector, White

*

Sedan

*2

For Vehicles with Cell Phone/Telephone

*3

For Vehicles with Japan Equipment

*4

For Vehicles with TV Tuner

*5

For Vehicles Without External Vehicle Communication

*6

Avant

*7

For Vehicles Without Digital Radio

*8

For Vehicles Without China Equipment

*9

For Vehicles with Digital Radio

*10

For Vehicles Without TV Reception

*11

For Vehicles with External Vehicle Communication

*12

For Vehicles with China Equipment

*13

From December 2021
