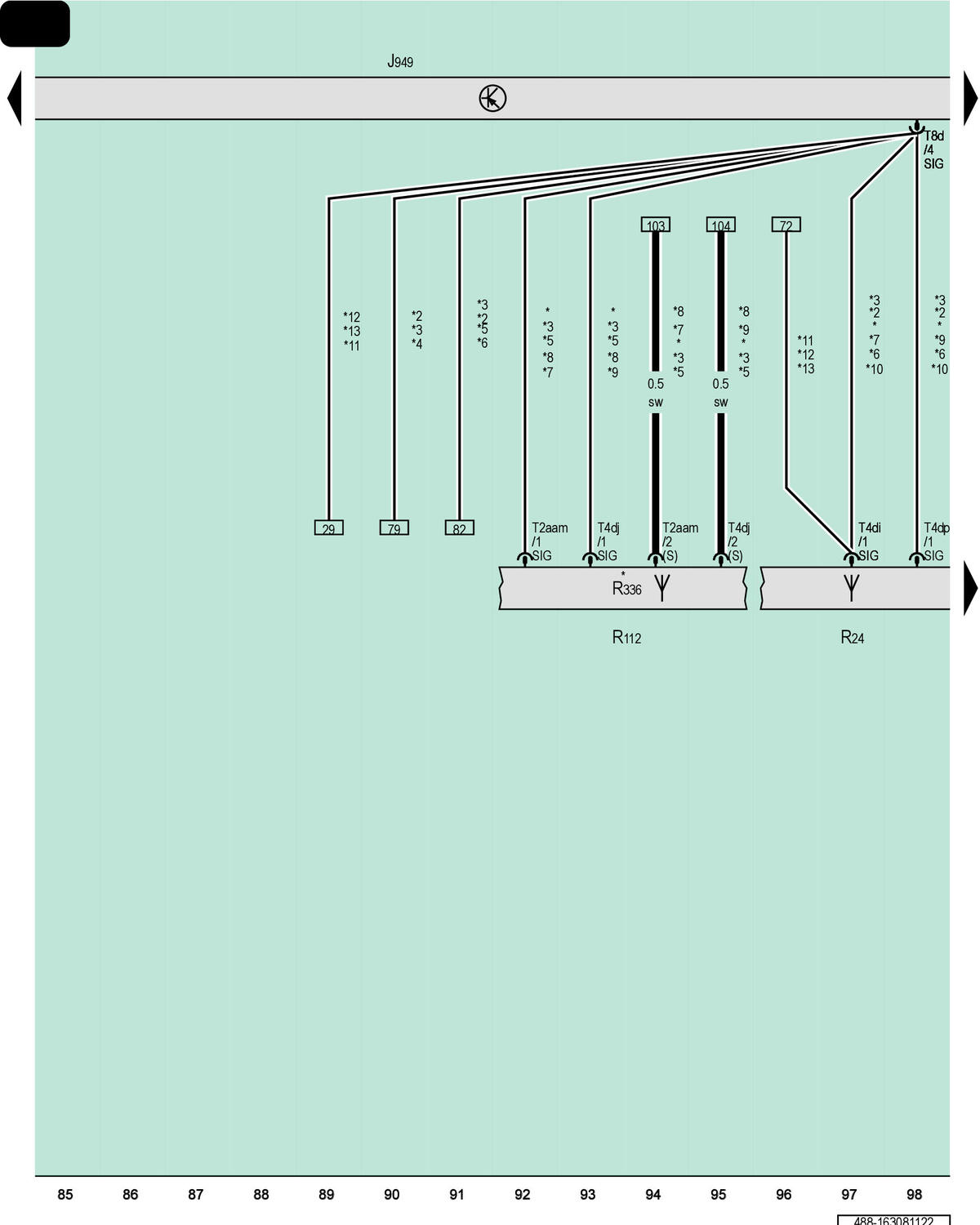

Control Module For Emergency Call Module And Communication Unit, Antenna Amplifier, Antenna Amplifier 3

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R24

Antenna Amplifier

R112

Antenna Amplifier 3

R336

Wireless Data Transfer Antenna

T2aam

2-Pin Connector, Gray

T4di

4-Pin Connector, Gray

T4dj

4-Pin Connector, Black

T4dp

4-Pin Connector, Yellow

T8d

8-Pin Connector, White

*

Avant

*2

Sedan

*3

For Vehicles with Cell Phone/Telephone

*4

For Vehicles with Japan Equipment

*5

For Vehicles with TV Tuner

*6

For Vehicles Without External Vehicle Communication

*7

For Vehicles Without Digital Radio

*8

For Vehicles Without China Equipment

*9

For Vehicles with Digital Radio

*10

For Vehicles Without TV Reception

*11

For Vehicles with External Vehicle Communication

*12

For Vehicles with China Equipment

*13

From December 2021
