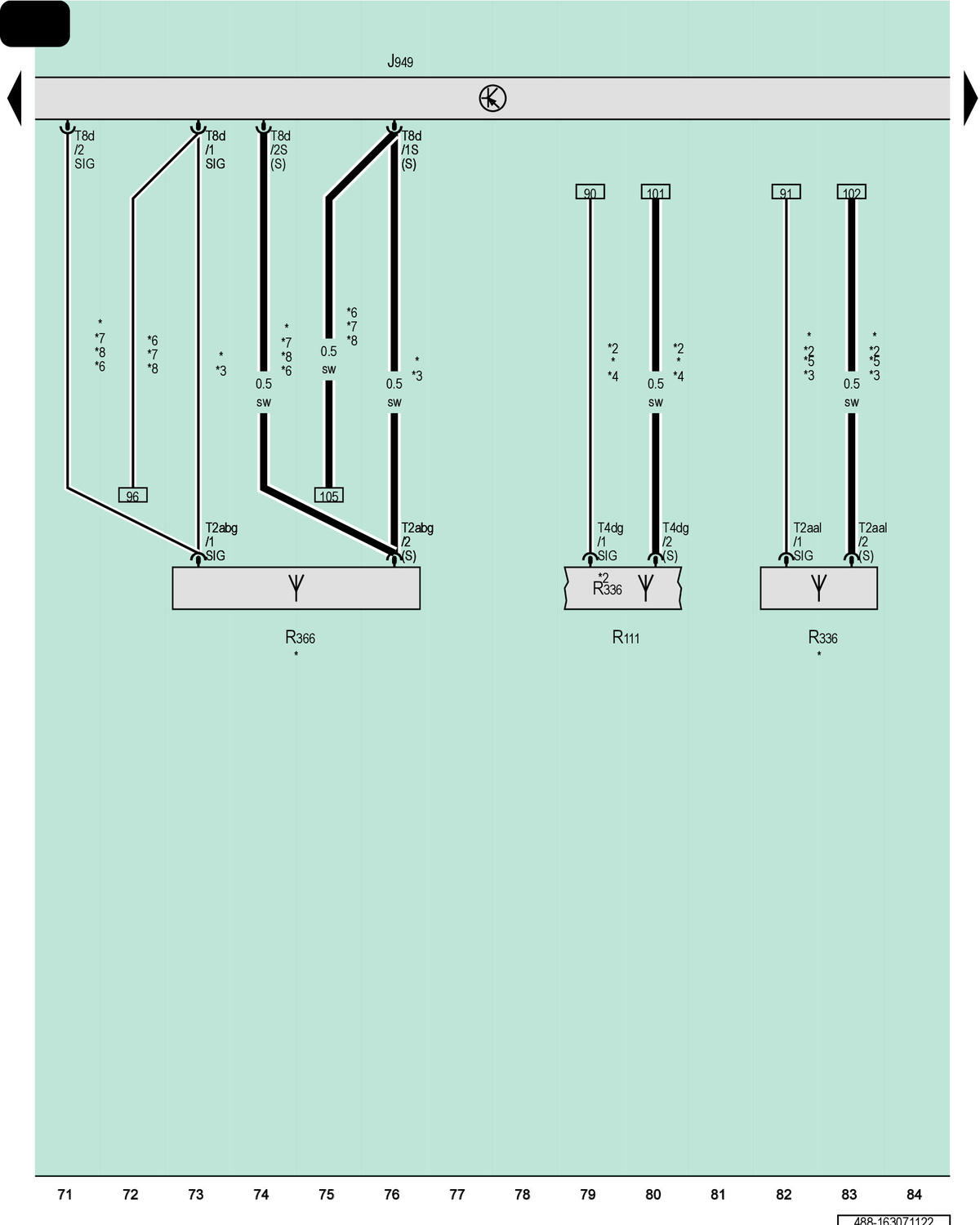

Control Module For Emergency Call Module And Communication Unit, Antenna Amplifier 2, Wireless Data Transfer Antenna, Wireless Data Transfer Antenna 2

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R111

Antenna Amplifier 2

R336

Wireless Data Transfer Antenna

R366

Wireless Data Transfer Antenna 2

T2aal

2-Pin Connector, Gray

T2abg

2-Pin Connector, Naturally Cloudy

T4dg

4-Pin Connector, Brown

T8d

8-Pin Connector, White

*

For Vehicles with Cell Phone/Telephone

*2

Sedan

*3

For Vehicles Without External Vehicle Communication

*4

For Vehicles with Japan Equipment

*5

For Vehicles with TV Tuner

*6

For Vehicles with External Vehicle Communication

*7

For Vehicles with China Equipment

*8

From December 2021
