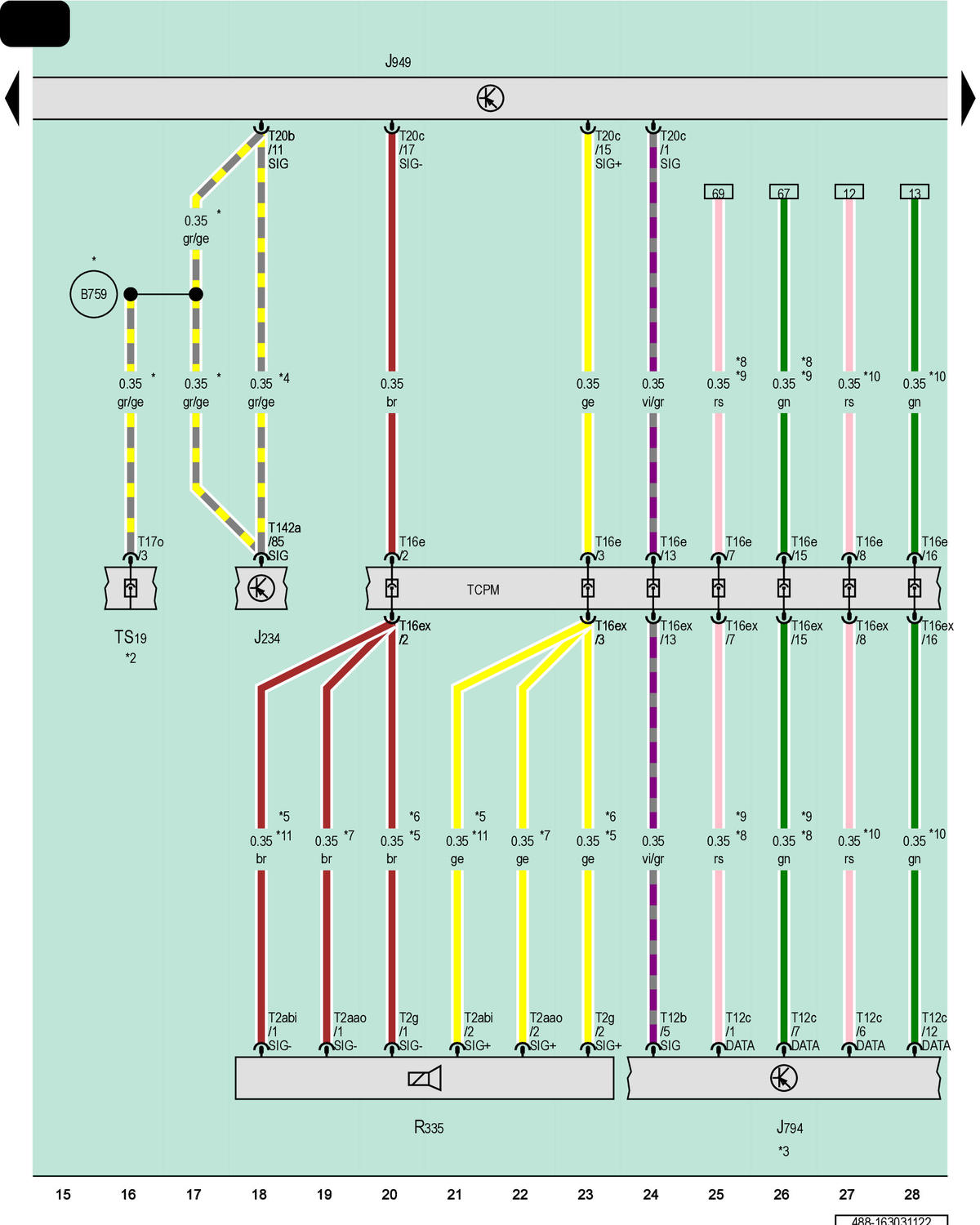

Airbag Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker
J234
Airbag Control Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R335
Emergency Call Module Speaker
T2aao
2-Pin Connector, Black
T2abi
2-Pin Connector, Green
T2g
2-Pin Connector, Black
T12b
12-Pin Connector, Blue
T12c
12-Pin Connector, Green
T16e
16-Pin Connector, Black
T16ex
16-Pin Connector, Black
T17o
17-Pin Connector, Red
T20b
20-Pin Connector, Black
T20c
20-Pin Connector, Naturally Cloudy
T142a
142-Pin Connector, Yellow
TCPM
Coupling Point on Instrument Panel, Center
TS19
Front Passenger Seat Coupling Point
B759
Crash Signal Connection (in Main Wiring Harness)
*
For Vehicles with Power Memory Front Seats
*2
Refer to Applicable Seat Adjustment Wiring Diagram
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
For Vehicles with Power Memory Driver Side Seats
*5
For Vehicles with Russia Equipment
*6
Omitted as a Running Change
*7
Not for Vehicles with Russia Equipment
*8
Audio Bus Data Bus Wire
*9
For Vehicles Without an Amplifier
*10
Ethernet Data Wire
*11
Running Change
