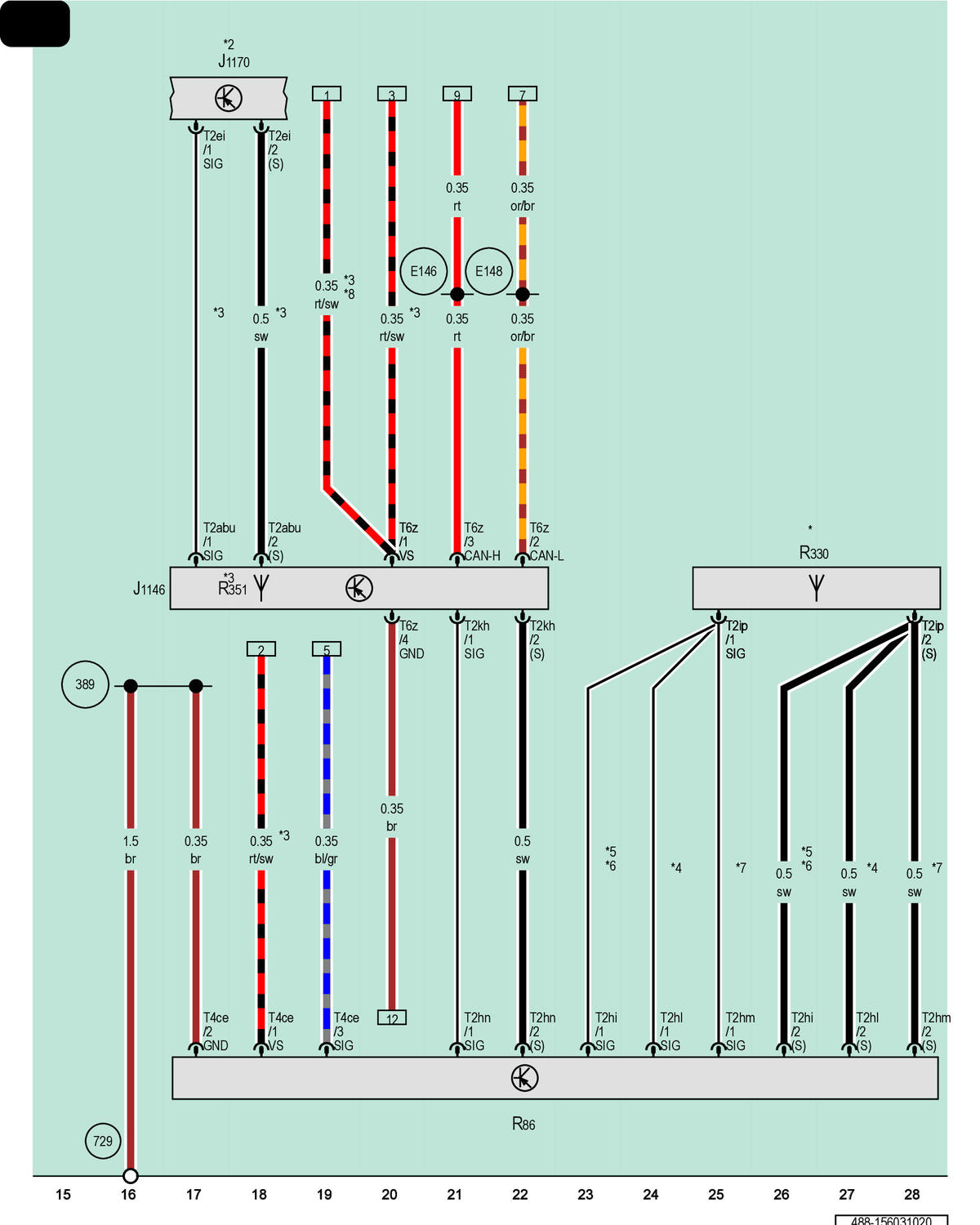

Mobile Device Charger 1, Near Field Communication Control Module 2, Cellular Telephone Amplifier, LTE Antenna 3
J1146
Mobile Device Charger 1
J1170
Near Field Communication Control Module 2
R86
Cellular Telephone Amplifier
R330
LTE Antenna 3, Behind the Left Rear Bumper
R351
Near Field Communication Antenna 2
T2abu
2-Pin Connector, Black
T2ei
2-Pin Connector, Black
T2hi
2-Pin Connector, Purple
T2hl
2-Pin Connector, Yellow
T2hm
2-Pin Connector, Naturally Cloudy
T2hn
2-Pin Connector, Black
T2ip
2-Pin Connector, Purple
T2kh
2-Pin Connector, Purple
T4ce
4-Pin Connector, Black
T6z
6-Pin Connector, Black
389
Ground Connection 24 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
E146
Connection 2 (CAN Bus Information Electronics Control Module 1, High)
E148
Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
*
For Vehicles with Emergency Call Module
*2
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3
Depending on Equipment
*4
For Vehicles with China Equipment
*5
For Vehicles Without US Equipment
*6
For Vehicles Without China Equipment
*7
For Vehicles with US Equipment
*8
From November 2020
