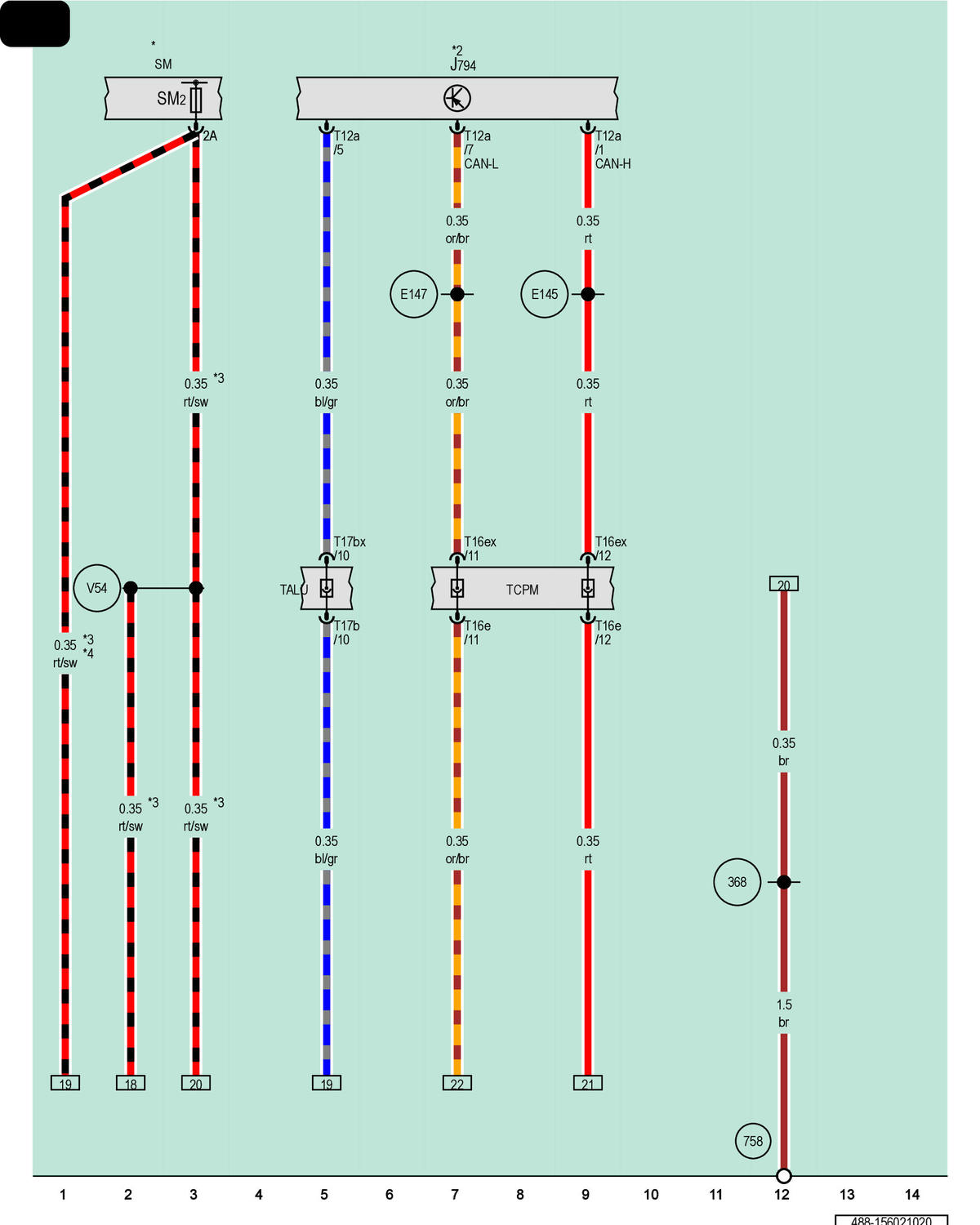

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J794

Fuse Panel M

SM2

Fuse 2 on Fuse Panel M

T12a

12-Pin Connector, Gray

T16e

16-Pin Connector, Black

T16ex

16-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

TCPM

Coupling Point on Instrument Panel, Center

368

Ground Connection 3 (in Main Wiring Harness)

758

Ground Connection 3 on Center Tunnel

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

V54

Telephone Connection 1 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Refer to Applicable MMI (Information Electronics) Wiring Diagram

Depending on Equipment

From November 2020
