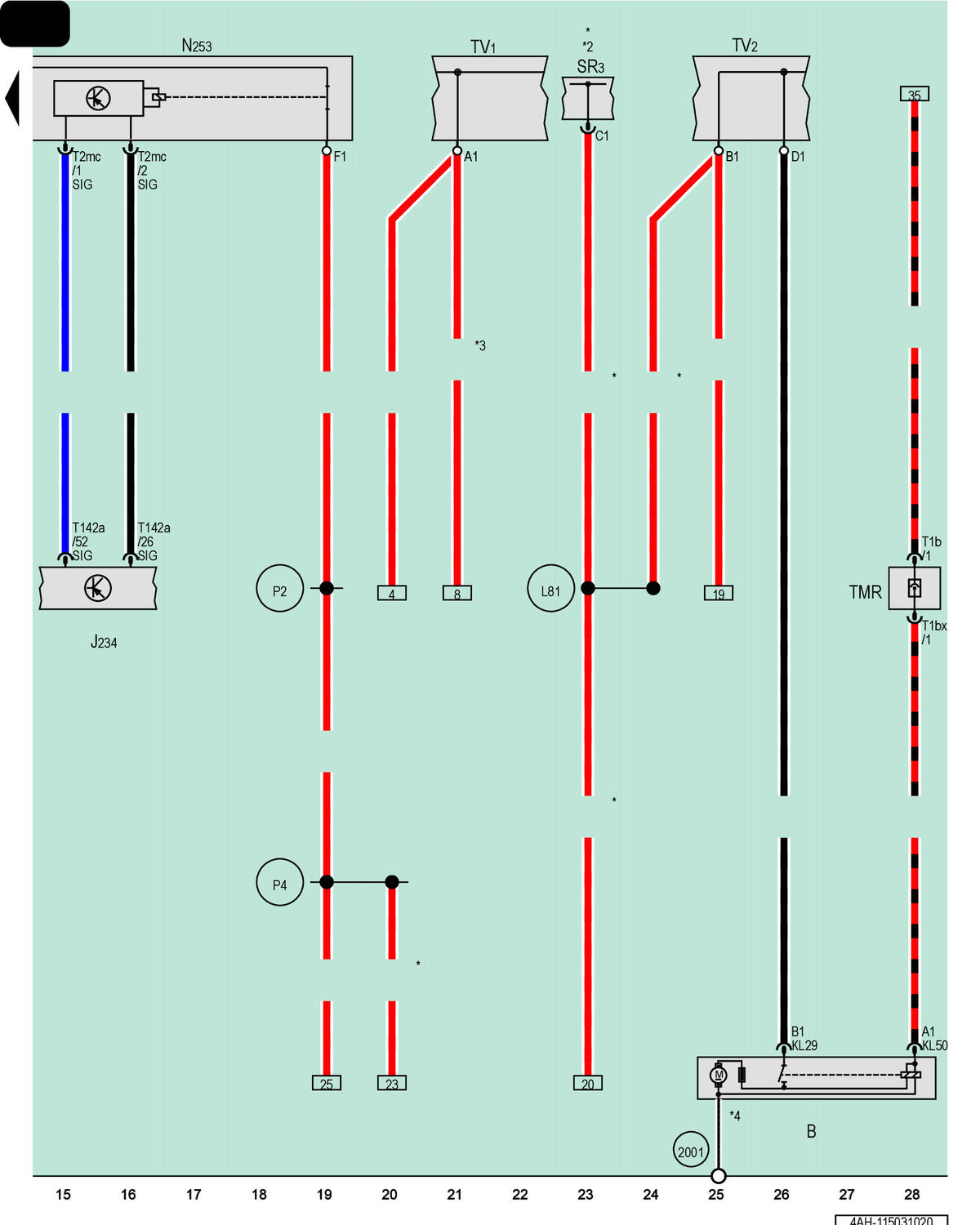

Starter, Airbag Control Module, Battery Interrupt Igniter, Wire Junction, Terminal 30 Wire Junction

B

Starter

J234

Airbag Control Module

N253

Battery Interrupt Igniter

SR3

Relay and Fuse Panel 3

T1b

1-Pin Connector, Black

T1bx

1-Pin Connector, Black

T2mc

2-Pin Connector, Yellow

T142a

142-Pin Connector, Yellow

TMR

Coupling Point in Engine/Motor Compartment, Right

TV1

Wire Junction

TV2

Terminal 30 Wire Junction

2001

Frame Ground

L81

Connection (in Auxiliary Heater Wiring Harness)

P2

Positive Connection (30) (in Battery Wiring Harness)

P4

Positive Connection 2 (30) (in Battery Wiring Harness)

*

For Vehicles with Auxiliary Heater

*2

Refer to Applicable Wiring Diagram

*3

Optional Equipment

*4

Ground Supply via the Housing
