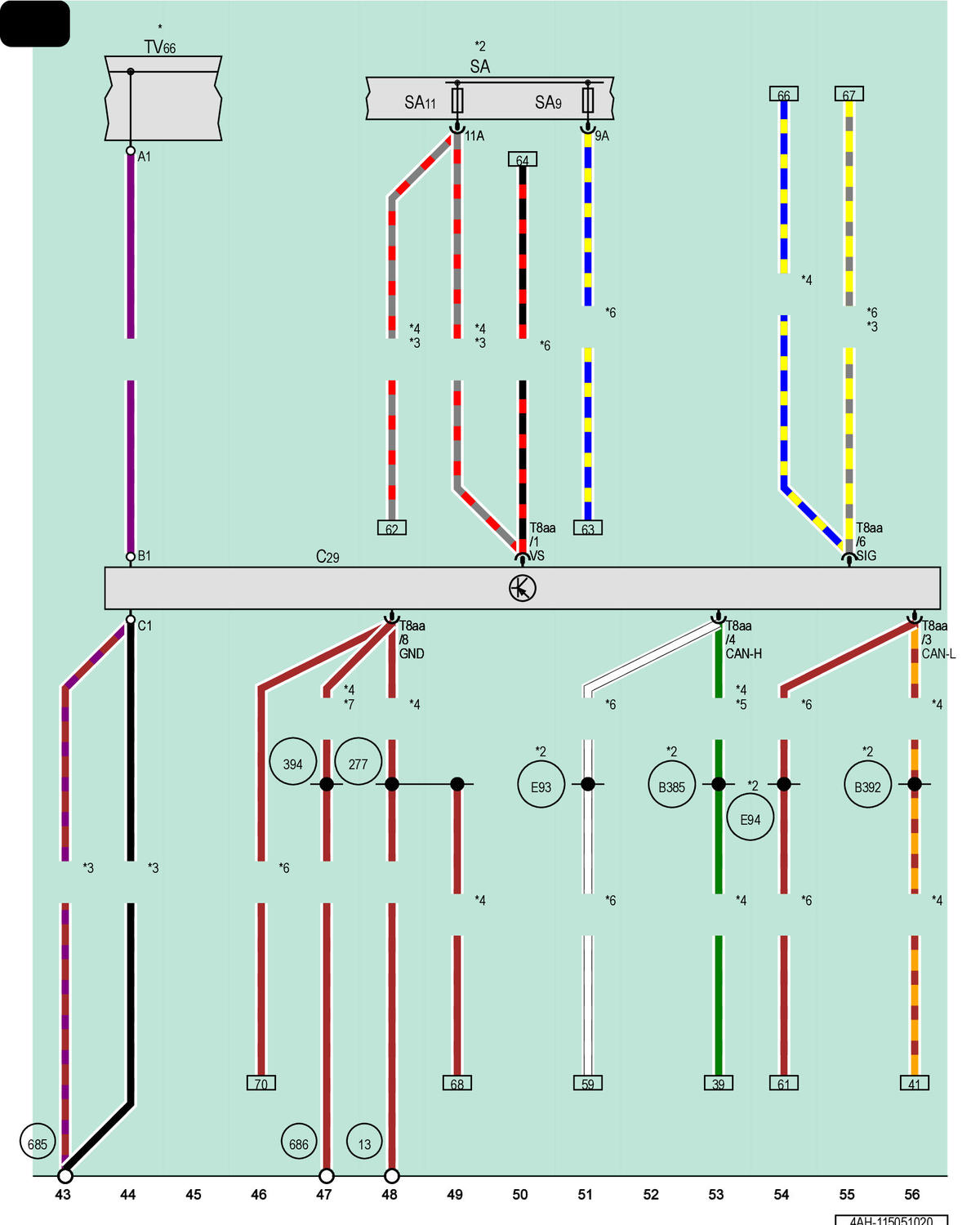

Starter Generator, Fuse Panel A, Terminal 40 Wire Junction

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

C29

Starter Generator

Fuse Panel A

SA9

Fuse 9 (On Fuse Panel A)

SA11

Fuse 11 (On Fuse Panel A)

T8aa

8-Pin Connector, Black

TV66

Terminal 40 Wire Junction

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)

394

Ground Connection 29 (in Main Wiring Harness)

685

Ground Connection 1 on Right Front Longitudinal Member

686

Ground Connection 2 on Right Front Longitudinal Member

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

E93

CAN Bus High Connection 1 (in Engine Wiring Harness)

E94

CAN Bus Low Connection 1 (in Engine Wiring Harness)

Refer to Applicable Wiring Diagram for 48 Volt System

Refer to Applicable Engine Wiring Diagram

Depending on Equipment

For Vehicles with Gasoline Engine

The Color of the Wires Depends on Vehicle Equipment

For Vehicles with Diesel Engine

For Vehicles with a 8-Cylinder Engine
