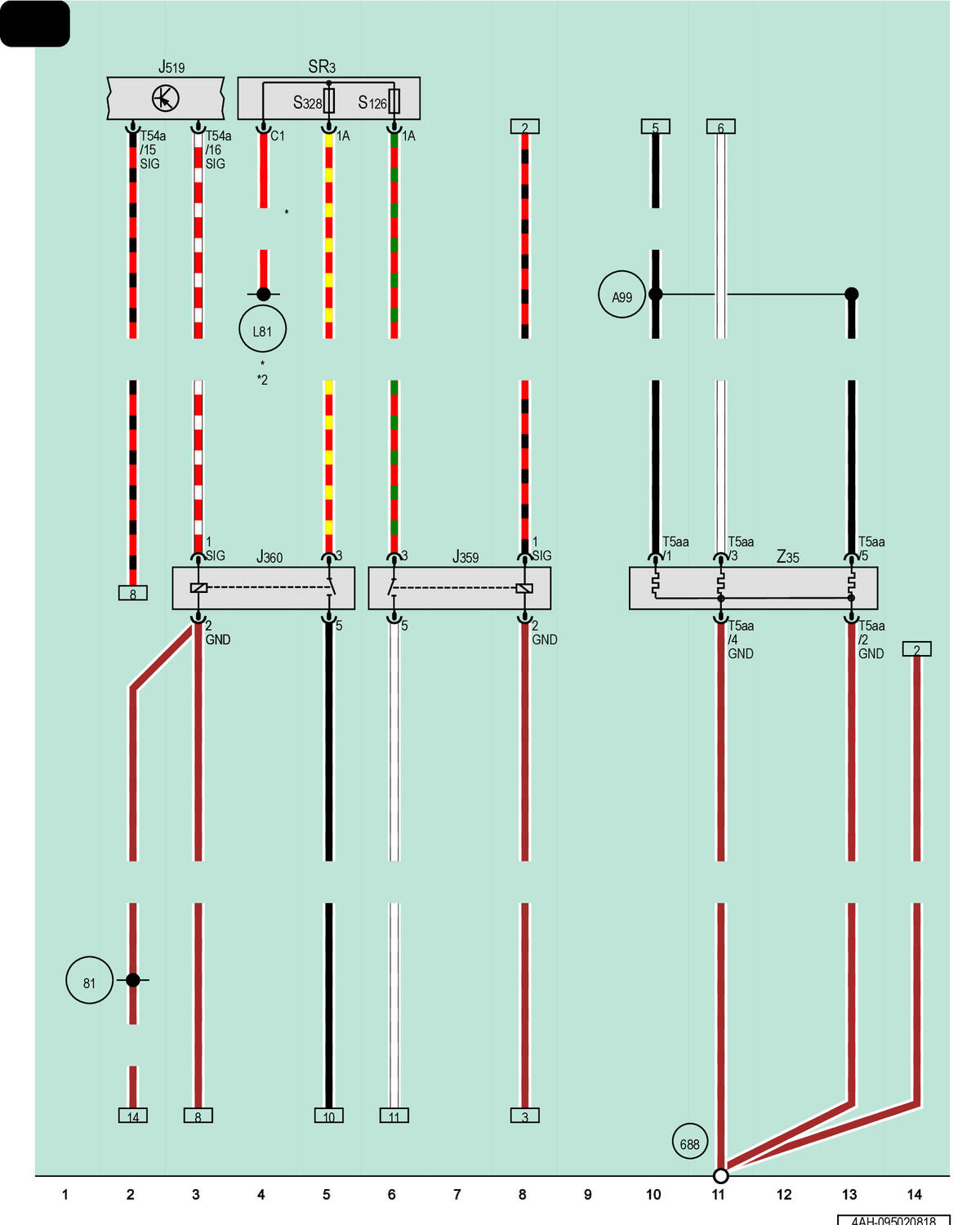

Low Heat Output Relay, High Heat Output Relay, Relay And Fuse Panel 3, Auxiliary Heater Heating Element
J359
Low Heat Output Relay
J360
High Heat Output Relay
J519
Vehicle Electrical System Control Module
SR3
Relay and Fuse Panel 3
S126
Auxiliary Heater Fuse
S328
Auxiliary Heater Fuse 2
T5aa
5-Pin Connector, Black
T54a
54-Pin Connector, Black
Z35
Auxiliary Heater Heating Element
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
688
Ground Connection 2 on Center Tunnel
A99
Connection 87 (in Instrument Panel Wiring Harness) 1
L81
Connection (in Auxiliary Heater Wiring Harness)
*
For Vehicles with Auxiliary Heater
*2
Refer to Applicable Battery Wiring Diagram
