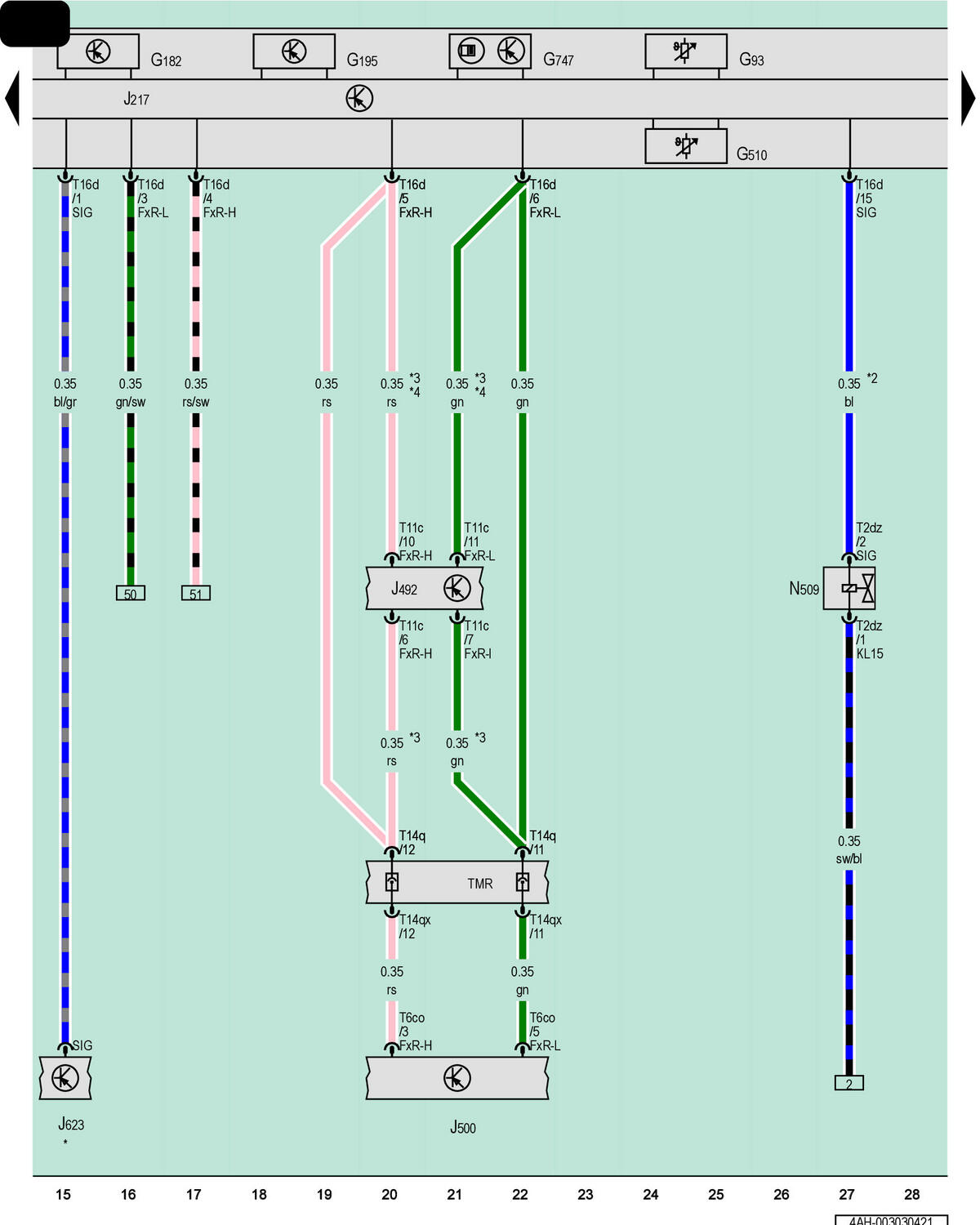

Transmission Fluid Temperature Sensor, Transmission Input Speed Sensor, Transmission Output Speed Sensor, Temperature Sensor In Control Module, Parking Lock Sensor, Transmission Control Module, Transmission Fluid Cooling Valve

Courtesy of AUDI OF AMERICA, LLC

G93

Transmission Fluid Temperature Sensor

G182

Transmission Input Speed Sensor

G195

Transmission Output Speed Sensor

G510

Temperature Sensor in Control Module

G747

Parking Lock Sensor

J217

Transmission Control Module

J492

All-Wheel Drive Control Module

J500

Power Steering Control Module

J623

Engine/Motor Control Module

N509

Transmission Fluid Cooling Valve

T2dz

2-Pin Connector, Black

T6co

6-Pin Connector, Brown

T11c

11-Pin Connector, Black

T14q

14-Pin Connector, Black

T14qx

14-Pin Connector, Black

T16d

16-Pin Connector, Black

TMR

Coupling Point in Engine/Motor Compartment, Right

*

Refer to Applicable Engine Wiring Diagram

*2

The Color of the Wires Depends on Vehicle Equipment

*3

For AWD Vehicles

*4

Omitted as a Running Change
