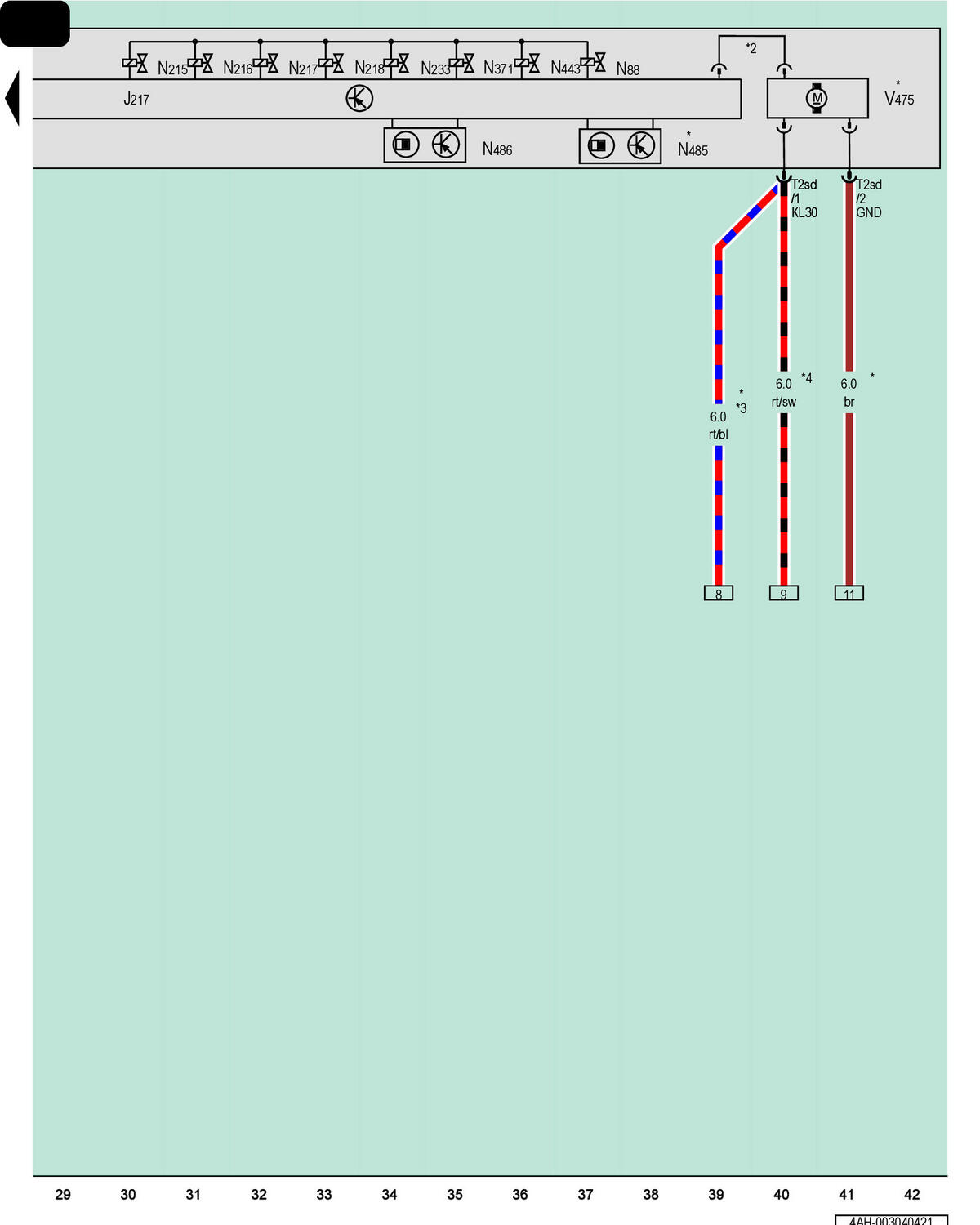

Transmission Control Module, Solenoid Valve 1, Automatic Transmission Pressure Regulating Valve 1, Transmission Fluid Auxiliary Hydraulic Pump 1

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

N88

Solenoid Valve 1

N215

Automatic Transmission Pressure Regulating Valve 1

N216

Automatic Transmission Pressure Regulating Valve 2

N217

Automatic Transmission Pressure Regulating Valve 3

N218

Automatic Transmission Pressure Regulating Valve 4

N233

Automatic Transmission Pressure Regulating Valve 5

N371

Automatic Transmission Pressure Regulating Valve 6

N443

Automatic Transmission Pressure Regulating Valve 7

N485

Accumulator Solenoid

N486

Parking Lock Solenoid

T2sd

2-Pin Connector, Black

V475

Transmission Fluid Auxiliary Hydraulic Pump 1

*

Depending on Equipment

*2

Data Bus Wire (LIN Bus)

*3

Omitted as a Running Change

*4

Running Change
