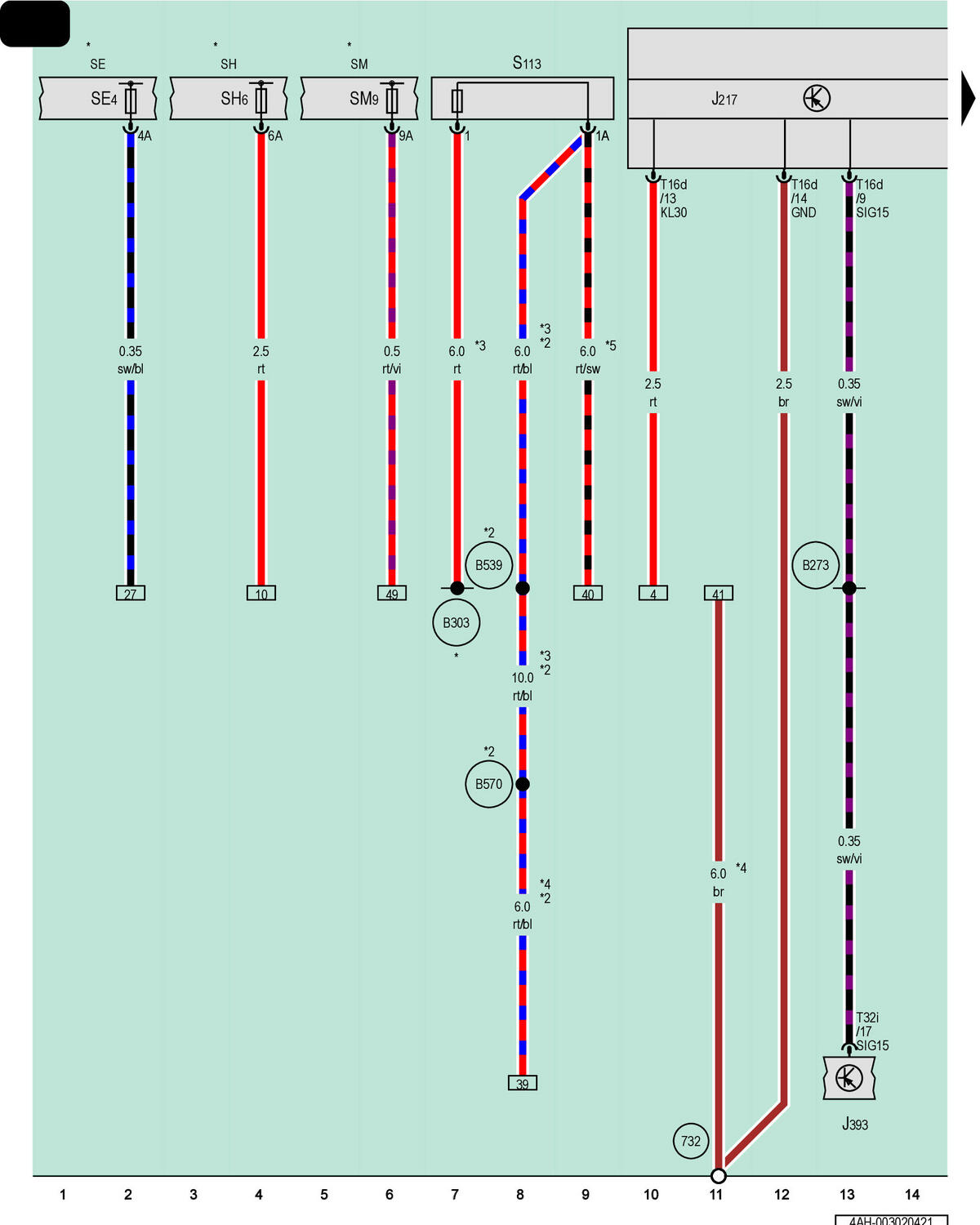

Transmission Control Module, Automatic Transmission Control Module Fuse

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J393

Comfort System Central Control Module

S113

Automatic Transmission Control Module Fuse

SE

Fuse Panel E

SE4

Fuse 4 on Fuse Panel E

SH

Fuse Panel H

SH6

Fuse 6 on Fuse Panel H

SM

Fuse Panel M

SM9

Fuse 9 on Fuse Panel M

T16d

16-Pin Connector, Black

T32i

32-Pin Connector, Naturally Cloudy, Black

732

Ground Connection 3 Under Driver Seat

B273

Positive Connection (15) (in Main Wiring Harness)

B303

Positive Connection 7 (30) (in Main Wiring Harness)

B539

Connection 30 (in Main Wiring Harness)

B570

Connection 37 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Omitted as a Running Change

*3

For Vehicles with 48 V System

*4

Depending on Equipment

*5

Running Change
