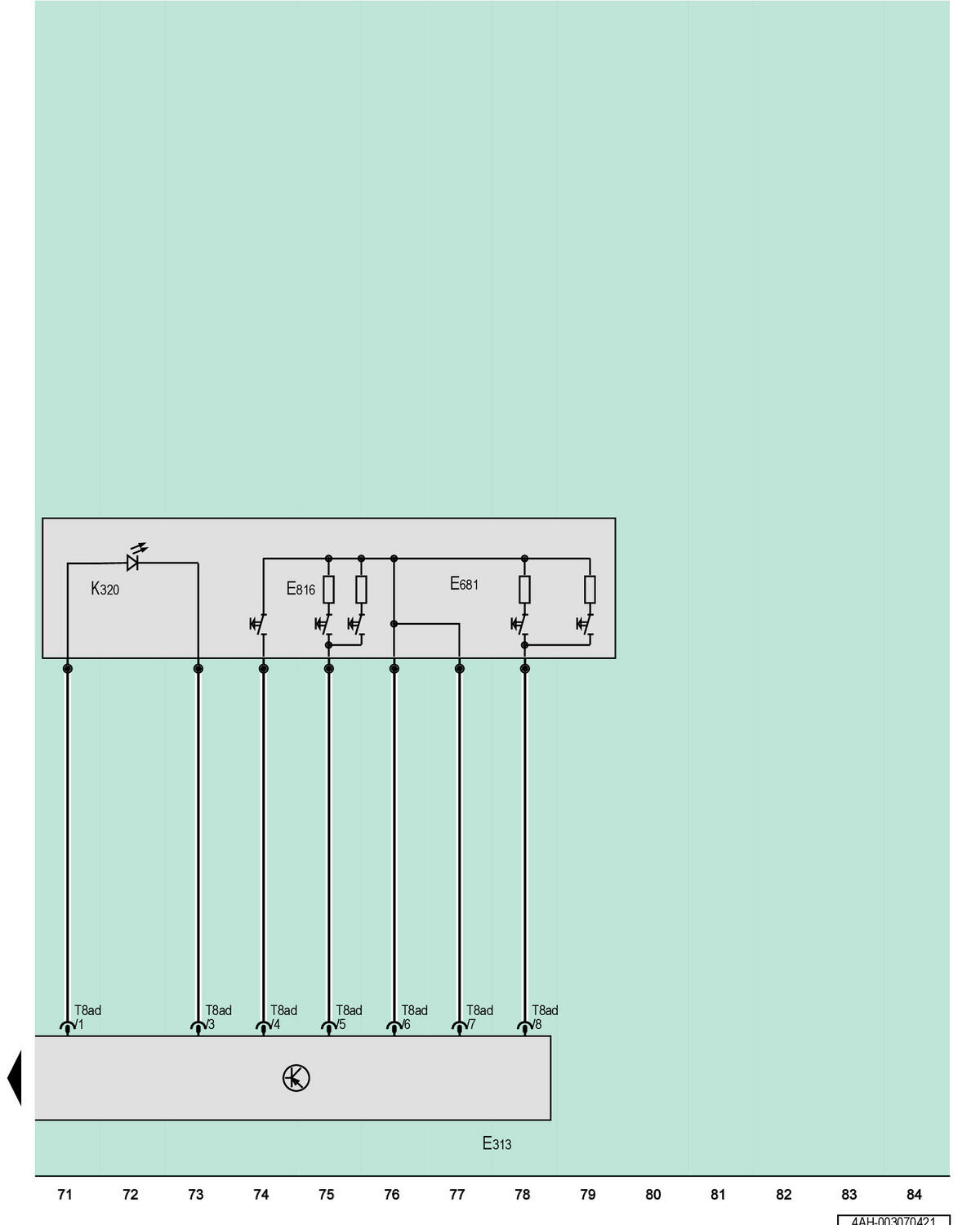

Selector Lever, Selector Lever Release Button, Parking Lock Button, Parking Lock Indicator Lamp

GWW4AH-003070421Courtesy of AUDI OF AMERICA, LLC

E313

Selector Lever

E681

Selector Lever Release Button

E816

Parking Lock Button

K320

Parking Lock Indicator Lamp

T8ad

8-Pin Connector, Black
