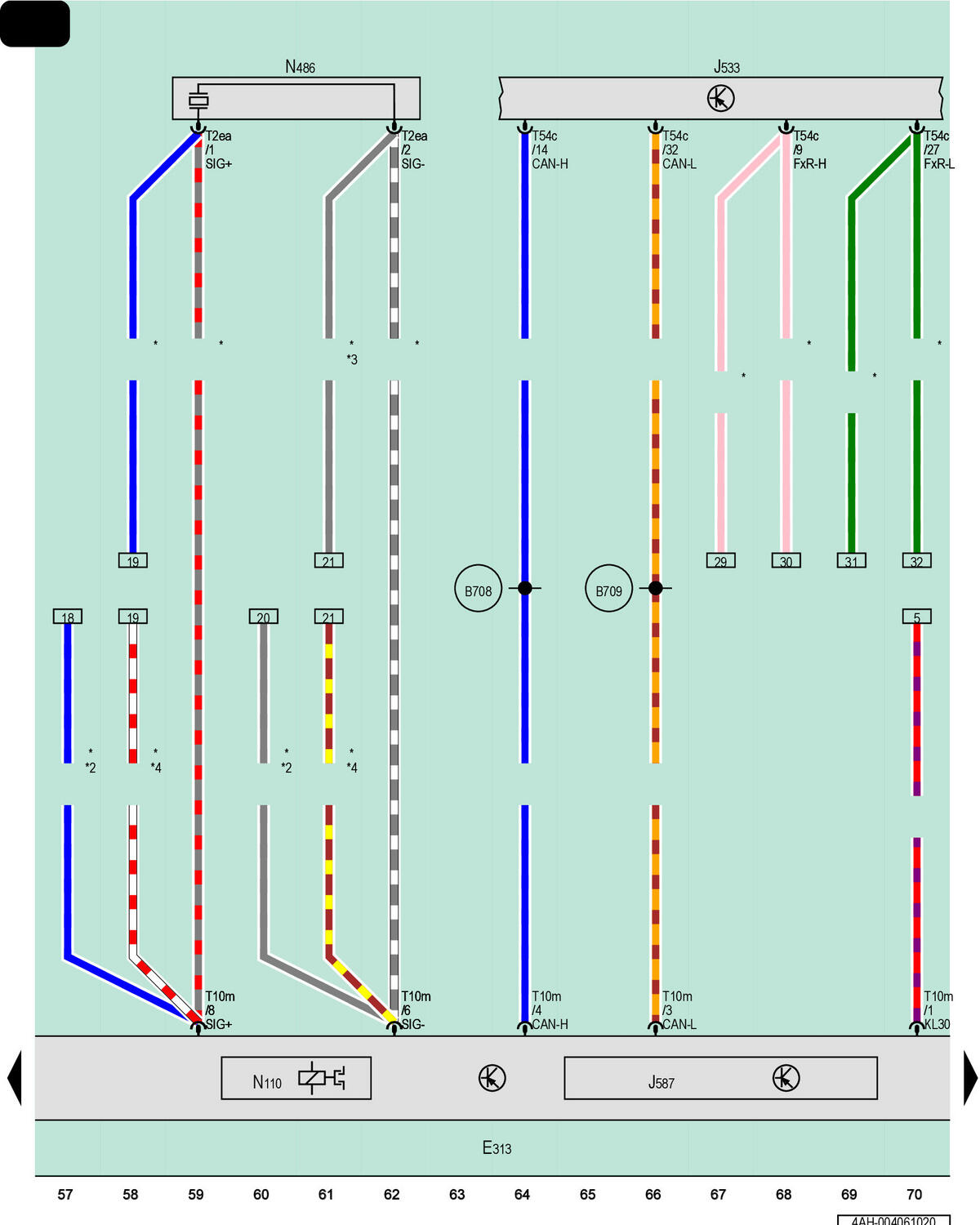

Selector Lever, Data Bus On Board Diagnostic Interface, Shift Lock Solenoid, Parking Lock Solenoid

Courtesy of AUDI OF AMERICA, LLC

E313

Selector Lever

J533

Data Bus on Board Diagnostic Interface

J587

Selector Lever Sensor System Control Module

N110

Shift Lock Solenoid

N486

Parking Lock Solenoid

T2ea

2-Pin Connector, Black

T10m

10-Pin Connector, Black

T54c

54-Pin Connector, Black

B708

Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B709

Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)

*

Depending on Equipment

*2

Omitted as a Running Change

*3

The Color of the Wires Depends on Vehicle Equipment

*4

Running Change
