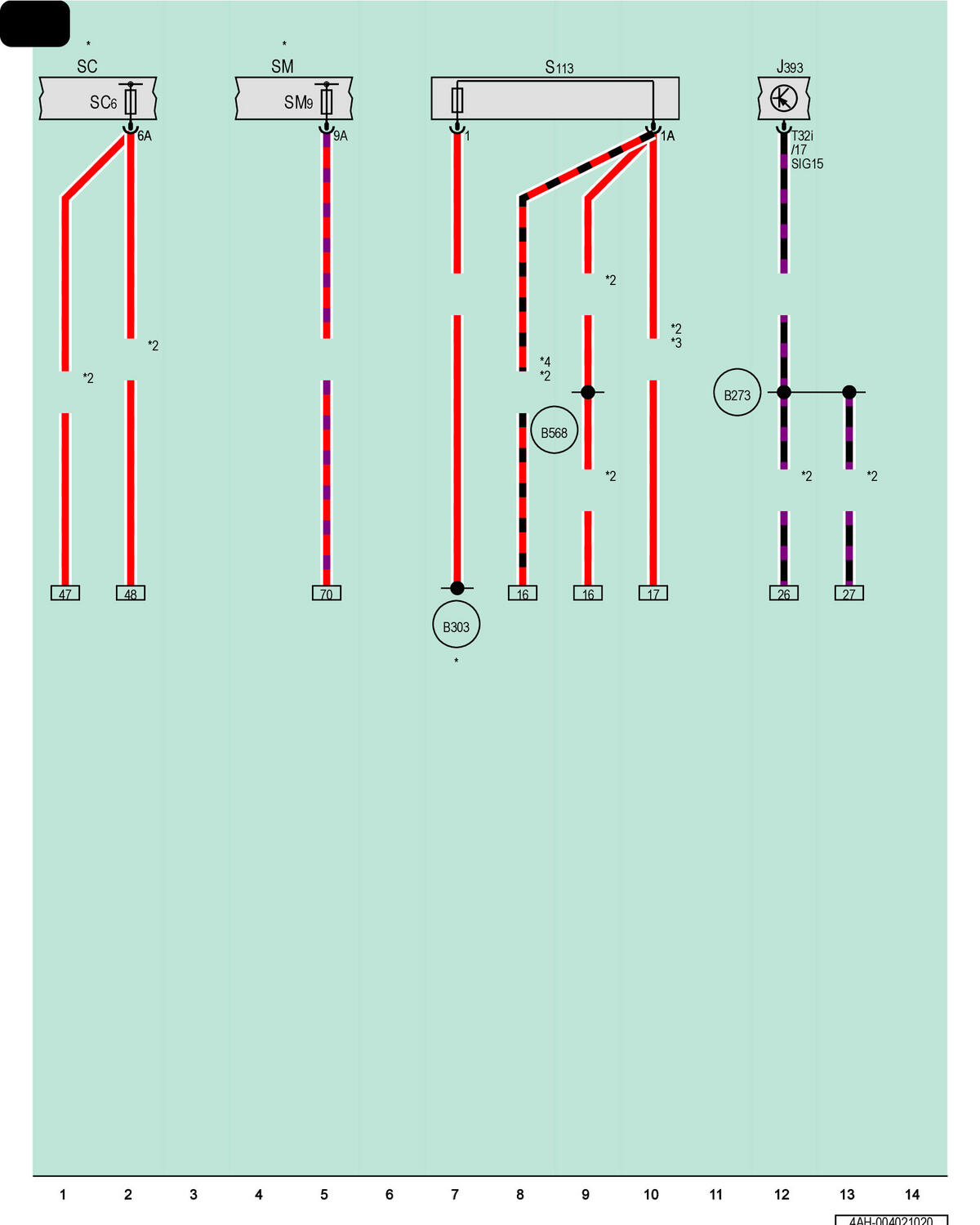

Automatic Transmission Control Module Fuse

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

SC

Fuse Panel C

SC6

Fuse 6 (On Fuse Panel C)

SM

Fuse Panel M

SM9

Fuse 9 on Fuse Panel M

S113

Automatic Transmission Control Module Fuse

T32i

32-Pin Connector, Naturally Cloudy, Black

B273

Positive Connection (15) (in Main Wiring Harness)

B303

Positive Connection 7 (30) (in Main Wiring Harness)

B568

Connection 35 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Depending on Equipment

*3

Omitted as a Running Change

*4

Running Change
