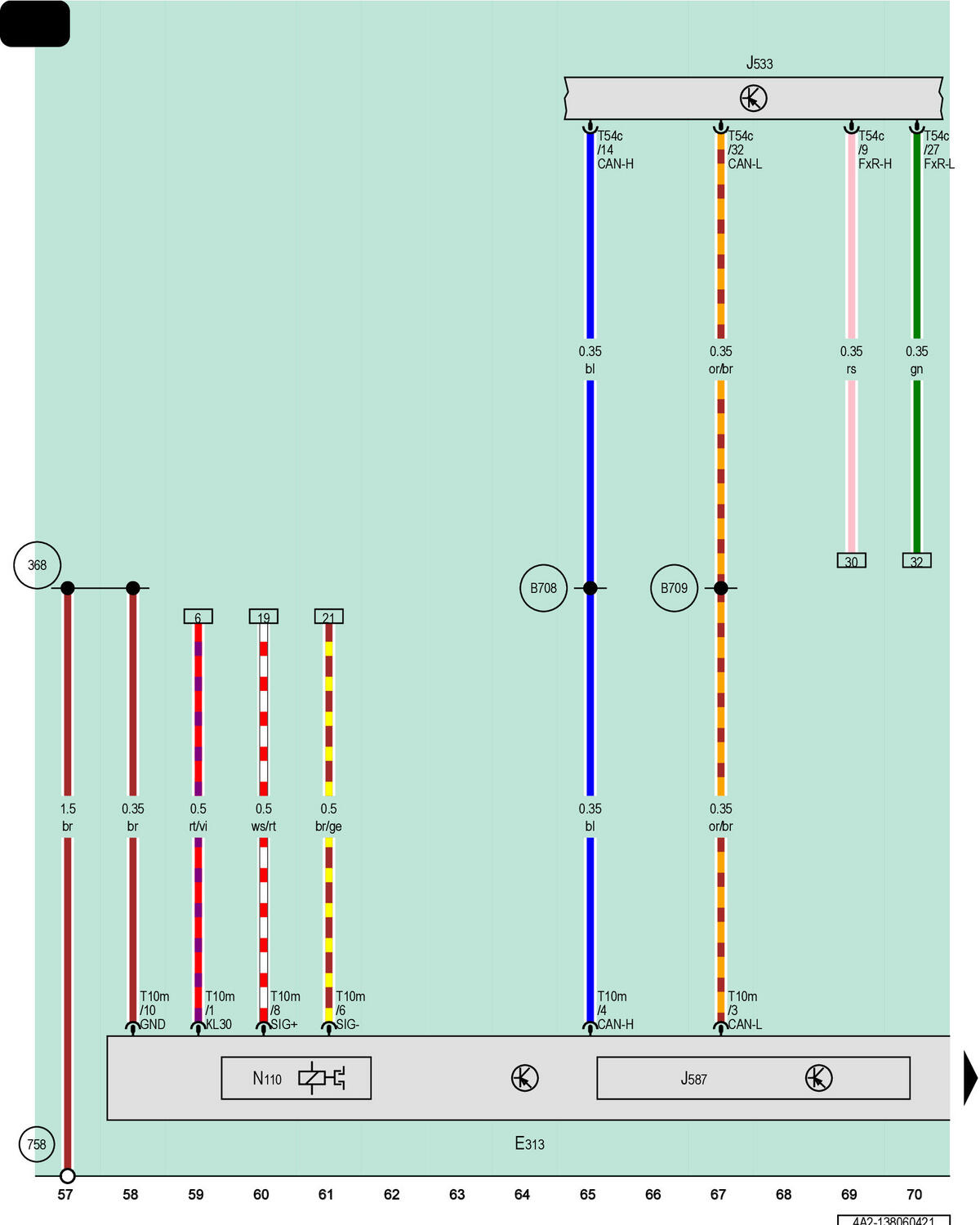

Selector Lever, Data Bus On Board Diagnostic Interface, Shift Lock Solenoid

Courtesy of AUDI OF AMERICA, LLC

E313

Selector Lever

J533

Data Bus on Board Diagnostic Interface

J587

Selector Lever Sensor System Control Module

N110

Shift Lock Solenoid

T10m

10-Pin Connector, Black

T54c

54-Pin Connector, Black

368

Ground Connection 3 (in Main Wiring Harness)

758

Ground Connection 3 on Center Tunnel

B708

Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B709

Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
