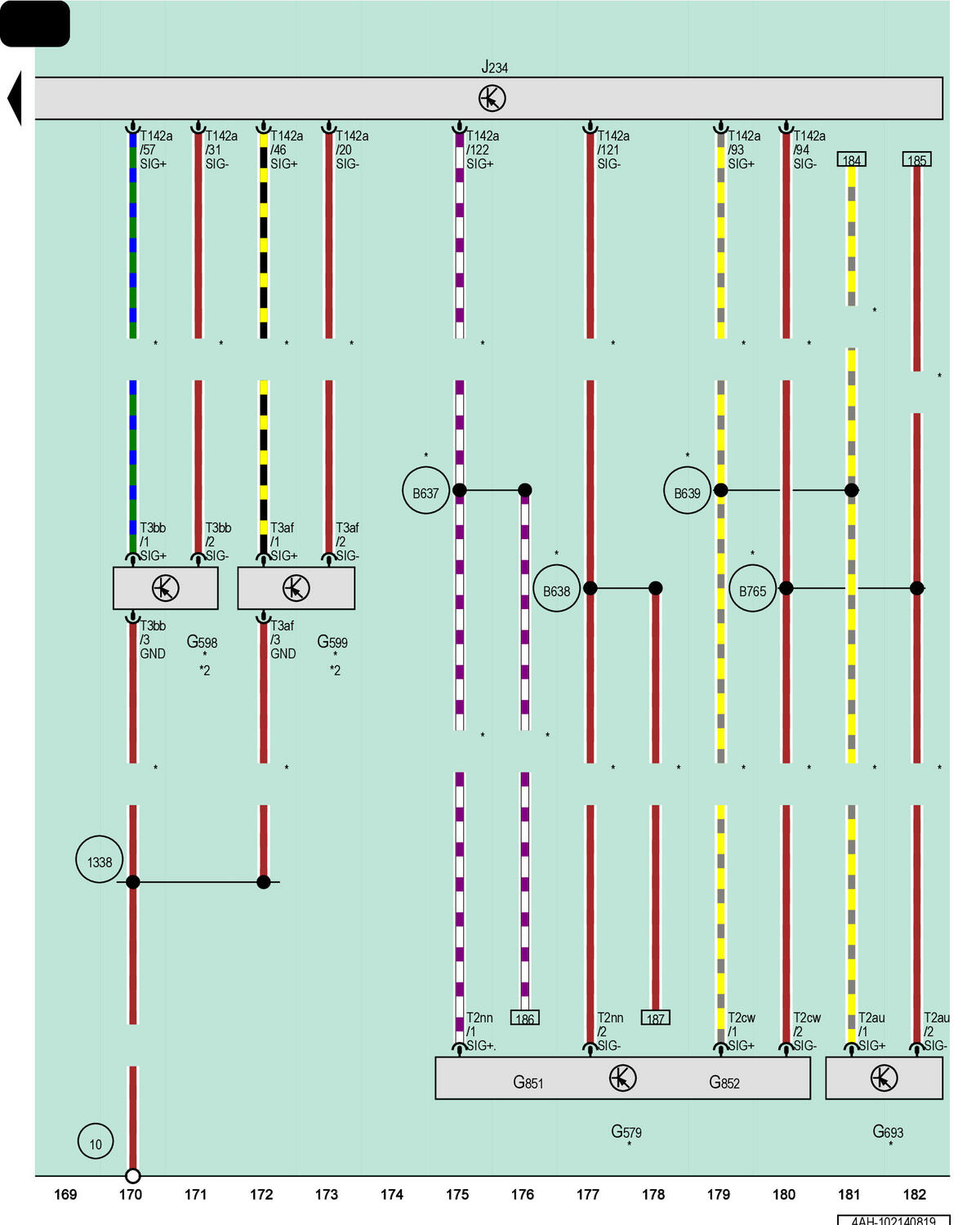

Pressure Hose Sensor For Front Pedestrian Protection, Pedestrian Protection Trigger 1, Pedestrian Protection Trigger 2, Pedestrian Protection Center Crash Sensor, Airbag Control Module
G579
Pressure Hose Sensor for Front Pedestrian Protection
G598
Pedestrian Protection Trigger 1
G599
Pedestrian Protection Trigger 2
G693
Pedestrian Protection Center Crash Sensor
G851
Driver Side Pedestrian Protection Crash Sensor 2
G852
Front Passenger Side Pedestrian Protection Crash Sensor 2
J234
Airbag Control Module
T2au
2-Pin Connector, Yellow
T2cw
2-Pin Connector, Yellow
T2nn
2-Pin Connector, Yellow
T3af
3-Pin Connector, Yellow
T3bb
3-Pin Connector, Yellow
T142a
142-Pin Connector, Yellow
10
Ground Connection in Plenum Chamber
1338
Ground Connection 40 (in Main Wiring Harness)
B637
Airbag Connection 1 (in Main Wiring Harness)
B638
Airbag Connection 2 (in Main Wiring Harness)
B639
Airbag Connection 3 (in Main Wiring Harness)
B765
Airbag Connection 4 (in Main Wiring Harness)
*
For Vehicles with Pedestrian Protection System
*2
Pre-Wired Component
