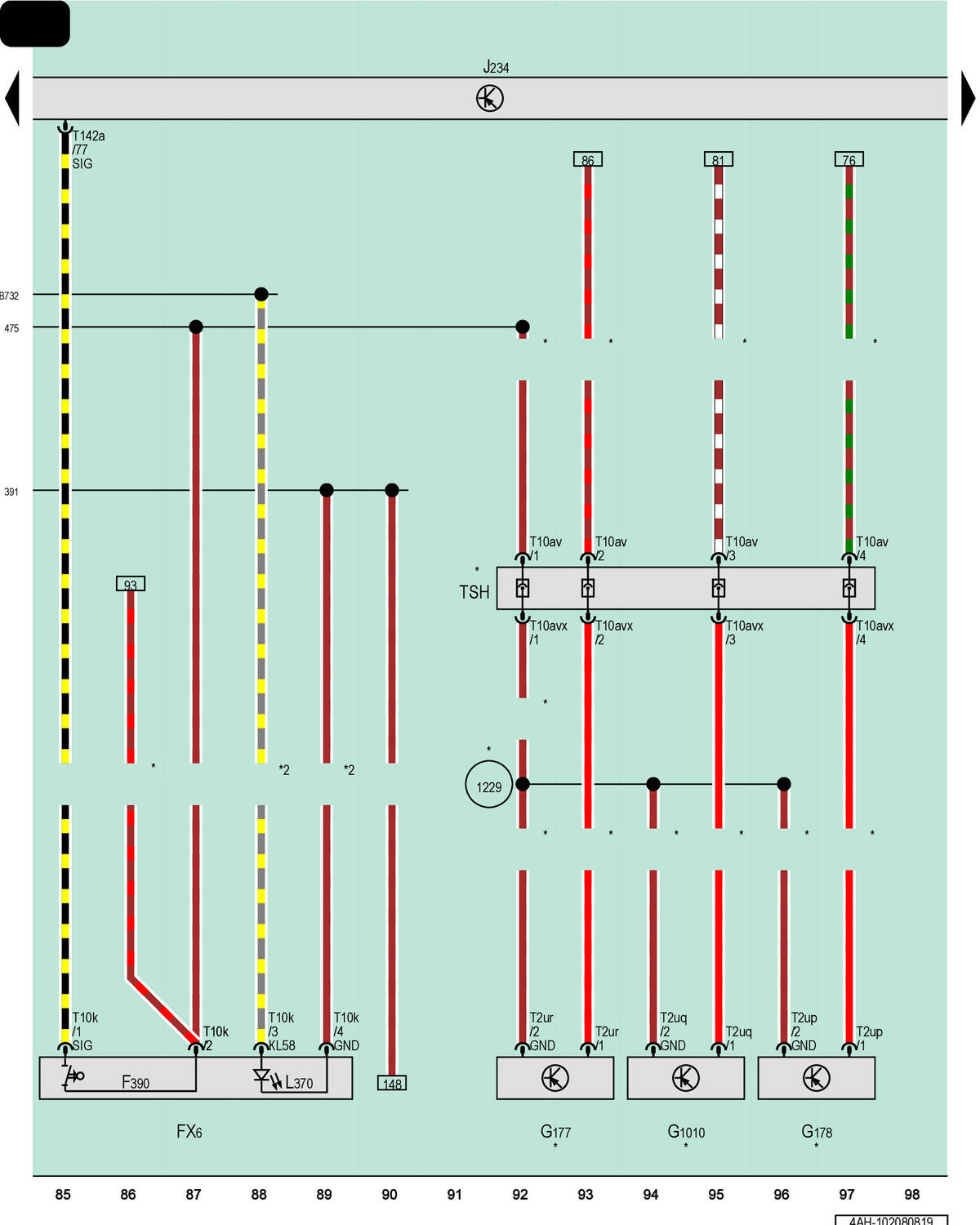

Passenger Side Second Row Seat Belt, Driver Side Second Row Seat Belt Switch, Driver Side Rear Seat Occupant Detection Sensor, Passenger Side Rear Seat Occupant Detection Sensor, Rear Center Seat Occupant Detection Sensor, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

FX6

Passenger Side Second Row Seat Belt

F390

Driver Side Second Row Seat Belt Switch

G177

Driver Side Rear Seat Occupant Detection Sensor

G178

Passenger Side Rear Seat Occupant Detection Sensor

G1010

Rear Center Seat Occupant Detection Sensor

J234

Airbag Control Module

L370

Passenger Side Rear Seat Belt Latch Lamp

T2up

2-Pin Connector, White

T2uq

2-Pin Connector, White

T2ur

2-Pin Connector, White

T10av

10-Pin Connector, Black

T10avx

10-Pin Connector, Black

T10k

10-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TSH

Rear Seat Coupling Point

391

Ground Connection 26 (in Main Wiring Harness)

475

Airbag Ground Connection (in Main Wiring Harness)

1229

Ground Connection 3 (in Rear Seat Adjustment Wiring Harness)

B732

Connection 58s (in Main Wiring Harness) 2

For Vehicles with a Passenger Occupant Detection System

Optional Equipment
