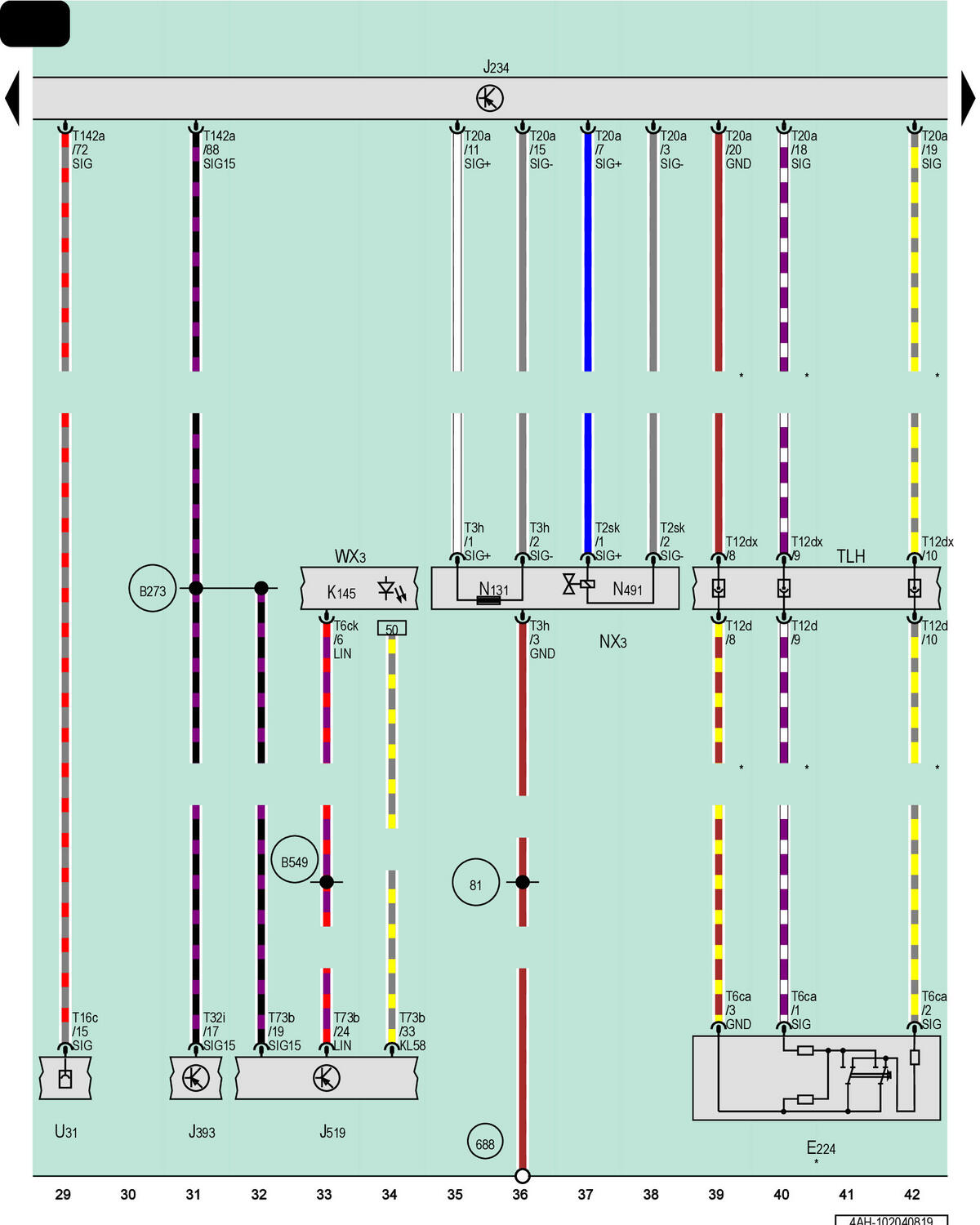

Front Passenger Airbag Deactivation Key Switch, Airbag Control Module, Vehicle Electrical System Control Module, Front Passenger Airbag -Disabled- Indicator Lamp, Front Passenger Airbag Unit
E224
Front Passenger Airbag Deactivation Key Switch
J234
Airbag Control Module
J393
Comfort System Central Control Module
J519
Vehicle Electrical System Control Module
K145
Front Passenger Airbag -Disabled- Indicator Lamp
NX3
Front Passenger Airbag Unit
N131
Front Passenger Airbag Igniter 1
N491
Front Passenger Airbag Release Valve Igniter
T2sk
2-Pin Connector, Yellow
T3h
3-Pin Connector, Yellow
T6ca
6-Pin Connector, Yellow
T6ck
6-Pin Connector, Black
T12d
12-Pin Connector, Black
T12dx
12-Pin Connector, Black
T16c
16-Pin Connector
T20a
20-Pin Connector, Yellow
T32i
32-Pin Connector, Naturally Cloudy, Black
T73b
73-Pin Connector, Black, Naturally Cloudy
T142a
142-Pin Connector, Yellow
TLH
Glove Compartment Wiring Harness Coupling Point
U31
Diagnostic Connection
WX3
Front Roof Module
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
688
Ground Connection 2 on Center Tunnel
B273
Positive Connection (15) (in Main Wiring Harness)
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
For Vehicles with Key Switch for Deactivating Front Passenger Airbag/Thorax Airbag/Seat Belt Latch Monitoring
