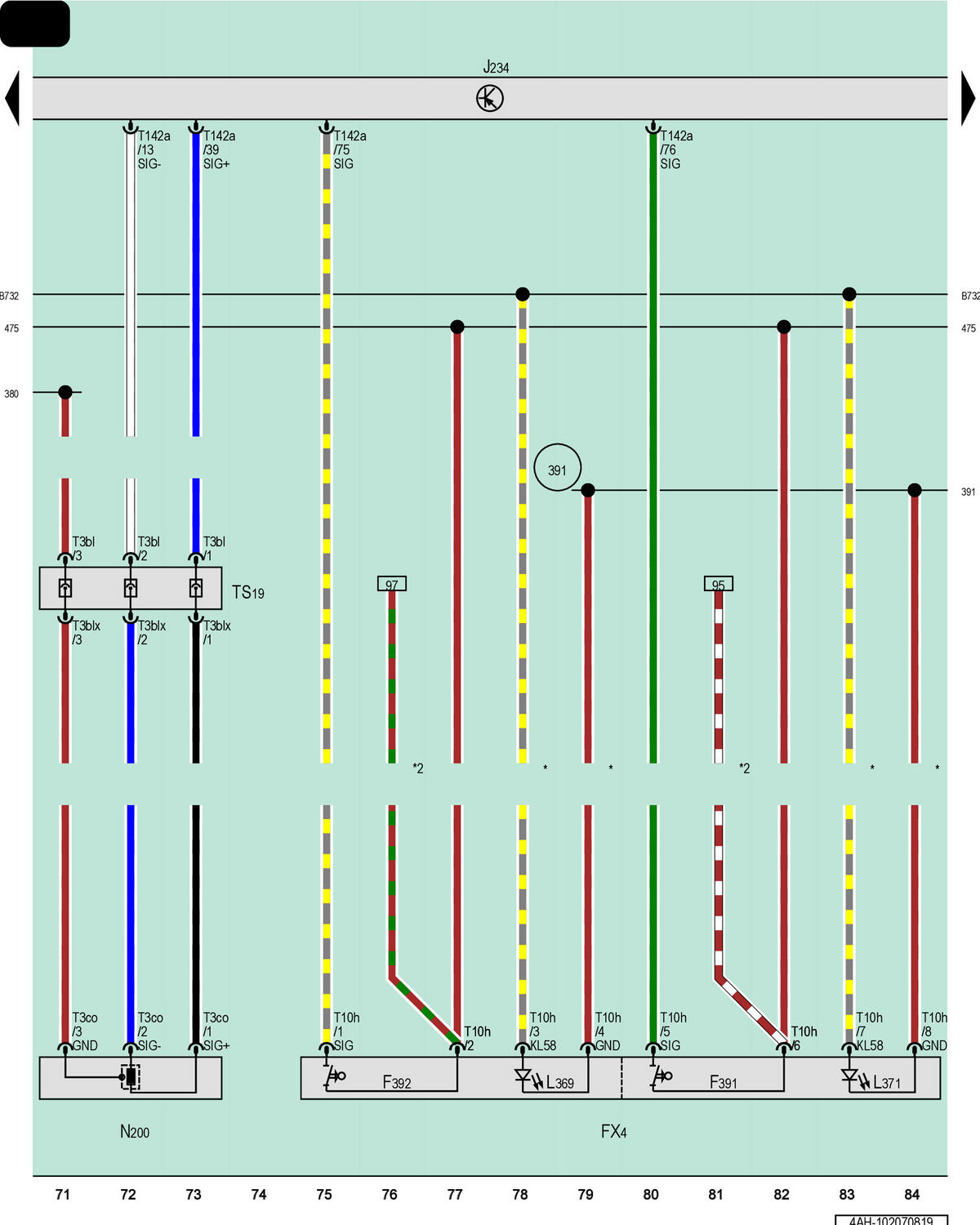

Dual Seat Belt Latch, Center Second Row Seat Belt Switch, Airbag Control Module, Front Passenger Thorax Airbag Igniter
FX4
Dual Seat Belt Latch
F391
Center Second Row Seat Belt Switch
F392
Passenger Side Second Row Seat Belt Switch
J234
Airbag Control Module
L369
Rear Driver Side Seat Belt Latch Lamp
L371
Center Rear Seat Belt Latch Lamp
N200
Front Passenger Thorax Airbag Igniter
T3bl
3-Pin Connector, Yellow
T3blx
3-Pin Connector, Yellow
T3co
3-Pin Connector, Yellow
T10h
10-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TS19
Front Passenger Seat Coupling Point
380
Ground Connection 15 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
B732
Connection 58s (in Main Wiring Harness) 2
*
Optional Equipment
*2
For Vehicles with a Passenger Occupant Detection System
