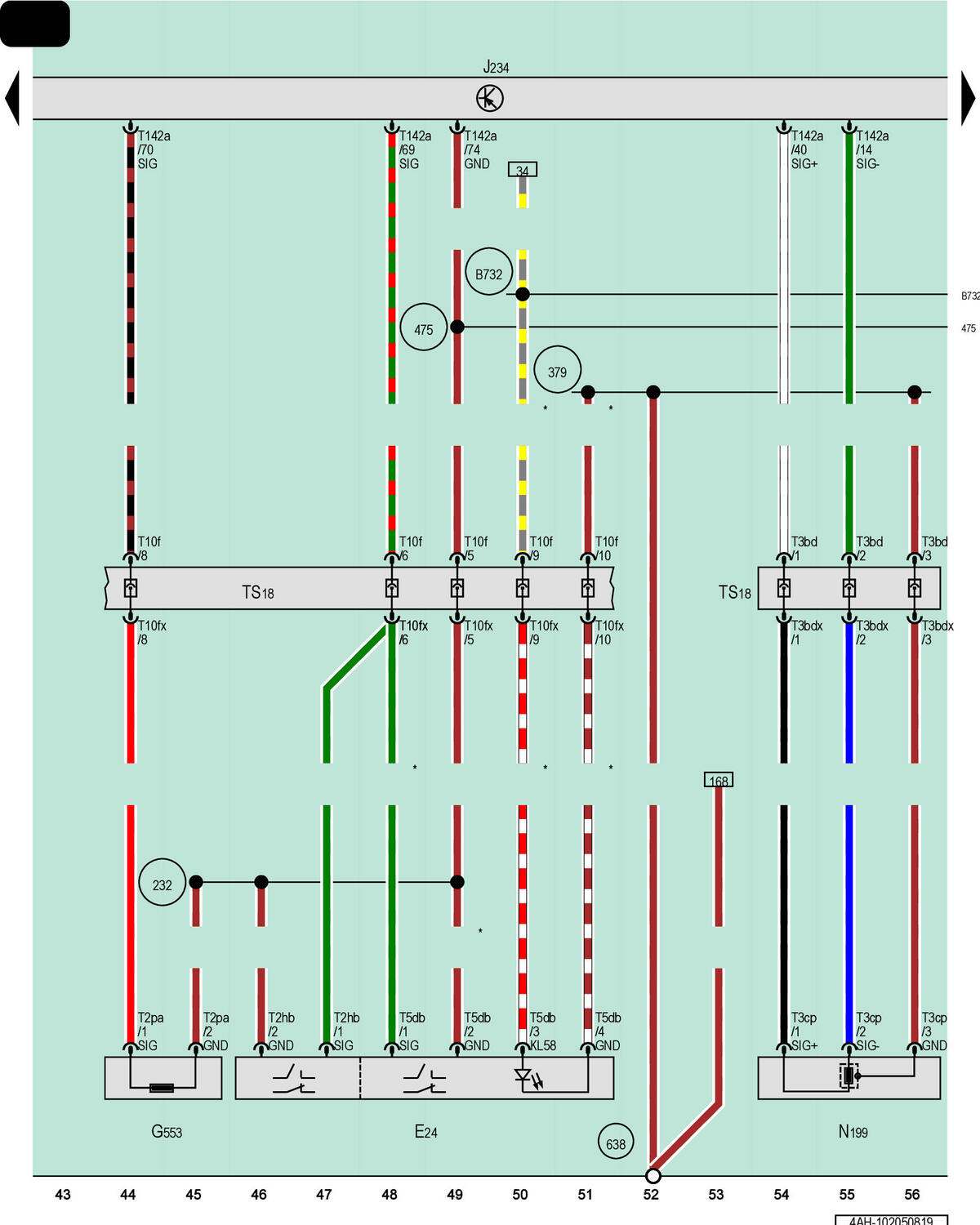

Driver Seat Belt Switch, Driver Seat Position Sensor, Airbag Control Module, Driver Thorax Airbag Igniter
E24
Driver Seat Belt Switch
G553
Driver Seat Position Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
T2hb
2-Pin Connector, Black
T2pa
2-Pin Connector
T3bd
3-Pin Connector, Yellow
T3bdx
3-Pin Connector, Yellow
T3cp
3-Pin Connector, Yellow
T5db
5-Pin Connector, Black
T10f
10-Pin Connector, Black
T10fx
10-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TS18
Driver Seat Coupling Point
232
Ground Connection (in Seat Belt Warning Wiring Harness)
379
Ground Connection 14 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
B732
Connection 58s (in Main Wiring Harness) 2
*
Optional Equipment
