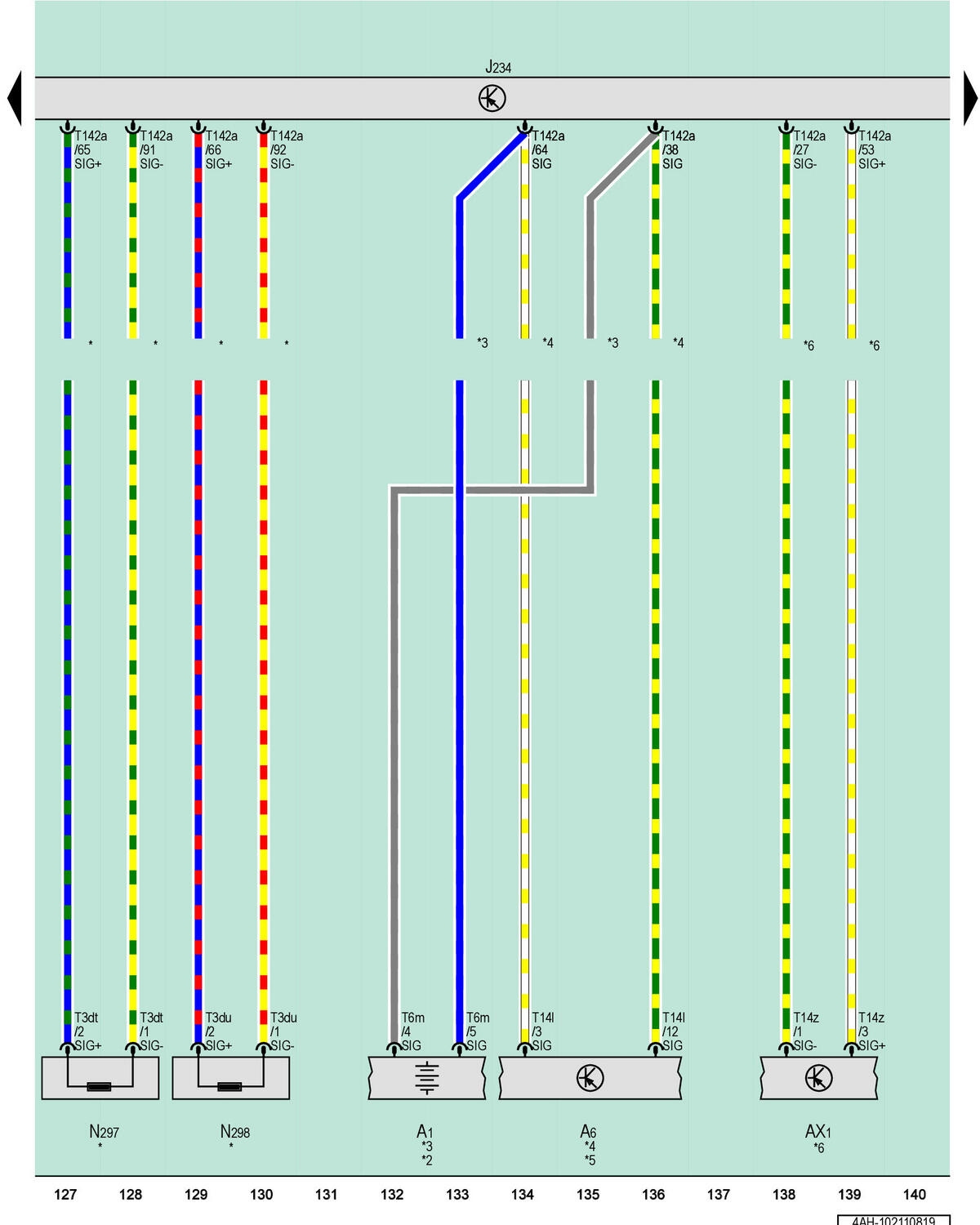

Auxiliary Battery, Hybrid Battery Unit, Battery, 48 V, Airbag Control Module, Driver Seat Belt TENSIONER Igniter 2, Front Passenger Seat Belt TENSIONER Igniter 2

Courtesy of AUDI OF AMERICA, LLC

A1

Auxiliary Battery

AX1

Hybrid Battery Unit

A6

Battery, 48 V

J234

Airbag Control Module

N297

Driver Seat Belt Tensioner Igniter 2

N298

Front Passenger Seat Belt Tensioner Igniter 2

T3dt

3-Pin Connector, Yellow

T3du

3-Pin Connector, Yellow

T6m

6-Pin Connector, Black

T14l

14-Pin Connector, Black

T14z

14-Pin Connector, Black

T142a

142-Pin Connector, Yellow

*

For Vehicles with Korea Equipment

*2

Refer to Applicable Battery Wiring Diagram

*3

For Vehicles with 12 V Hybrid System

*4

For Vehicles with 48 V System

*5

Refer to Applicable Wiring Diagram for 48 Volt System

*6

For Vehicles with Hybrid Drive
