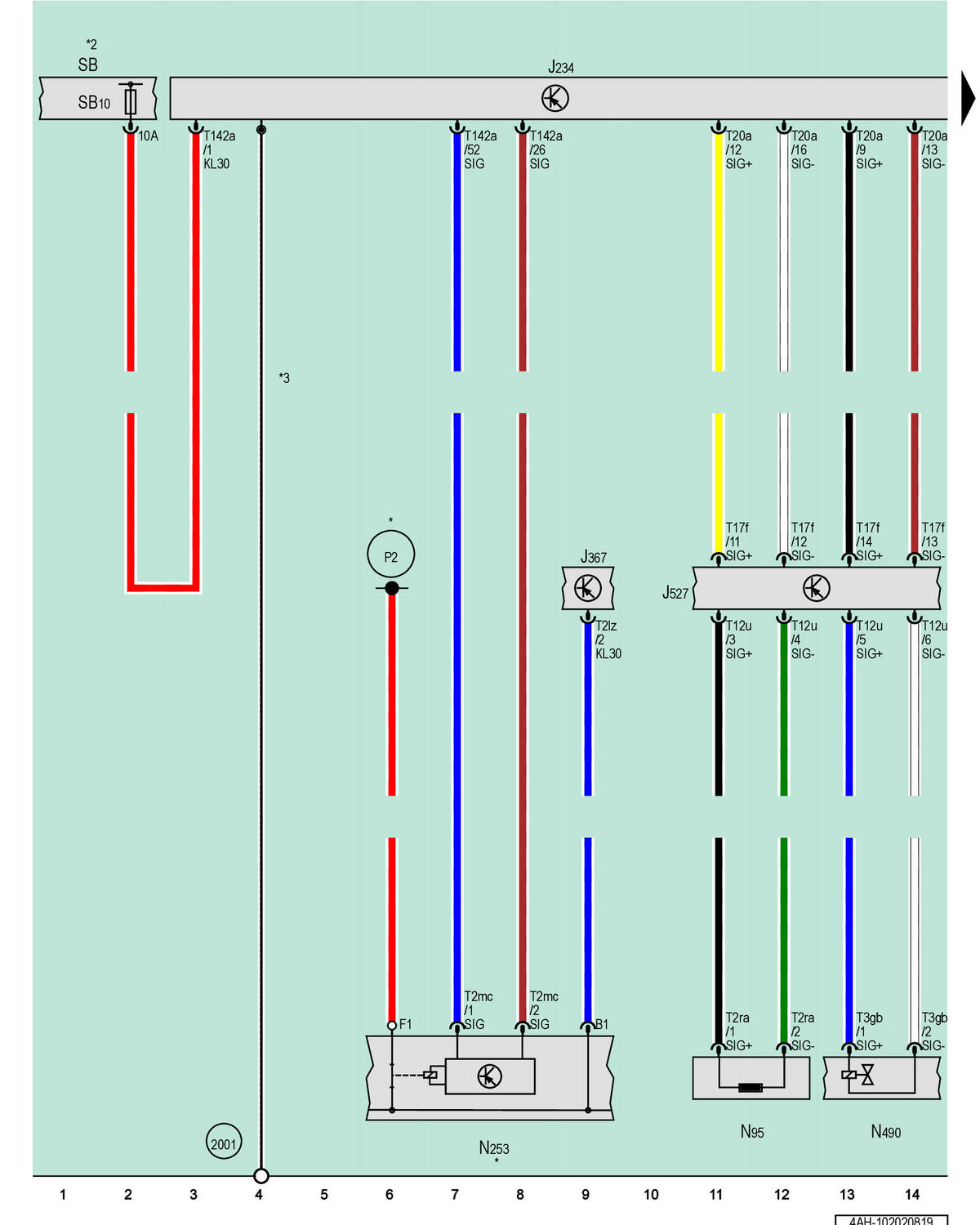

Airbag Control Module, Steering Column Electronics Control Module, Driver Airbag Igniter, Driver Airbag Release Valve Igniter

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J367

Battery Monitoring Control Module

J527

Steering Column Electronics Control Module

N95

Driver Airbag Igniter

N253

Battery Interrupt Igniter

N490

Driver Airbag Release Valve Igniter

SB

Fuse Panel B

SB10

Fuse 10 (On Fuse Panel B)

T2lz

2-Pin Connector, Black

T2mc

2-Pin Connector, Yellow

T2ra

2-Pin Connector, Black

T3gb

3-Pin Connector, Brown

T12u

12-Pin Connector, Yellow

T17f

17-Pin Connector, Yellow

T20a

20-Pin Connector, Yellow

T142a

142-Pin Connector, Yellow

2001

Frame Ground

P2

Positive Connection (30) (in Battery Wiring Harness)

*

Refer to Applicable Battery Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

Ground Supply via the Airbag Control Module Housing
