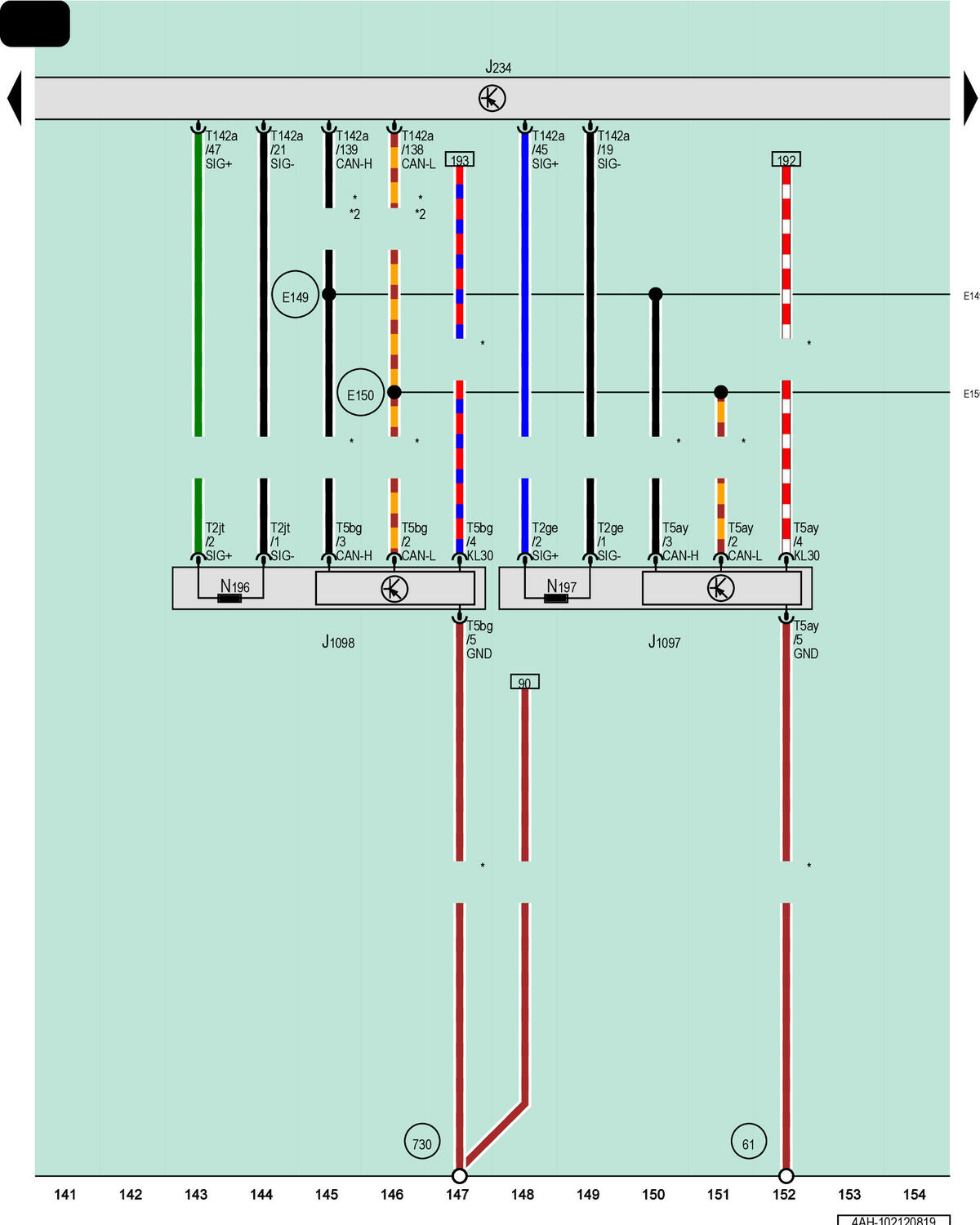

Airbag Control Module, Left Rear Seat Belt TENSIONER Control Module, Right Rear Seat Belt TENSIONER Control Module

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J1097

Left Rear Seat Belt Tensioner Control Module

J1098

Right Rear Seat Belt Tensioner Control Module

N196

Driver Side Rear Seat Belt Tensioner Igniter

N197

Passenger Side Rear Seat Belt Tensioner Igniter

T2ge

2-Pin Connector, Yellow

T2jt

2-Pin Connector, Yellow

T5ay

5-Pin Connector, Naturally Cloudy

T5bg

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

Ground Connection on Left C-Pillar

730

Ground Connection 1 on Right Rear Wheel Housing

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)

For Vehicles with Reversible Seat Belt Tensioners

Optional Equipment
