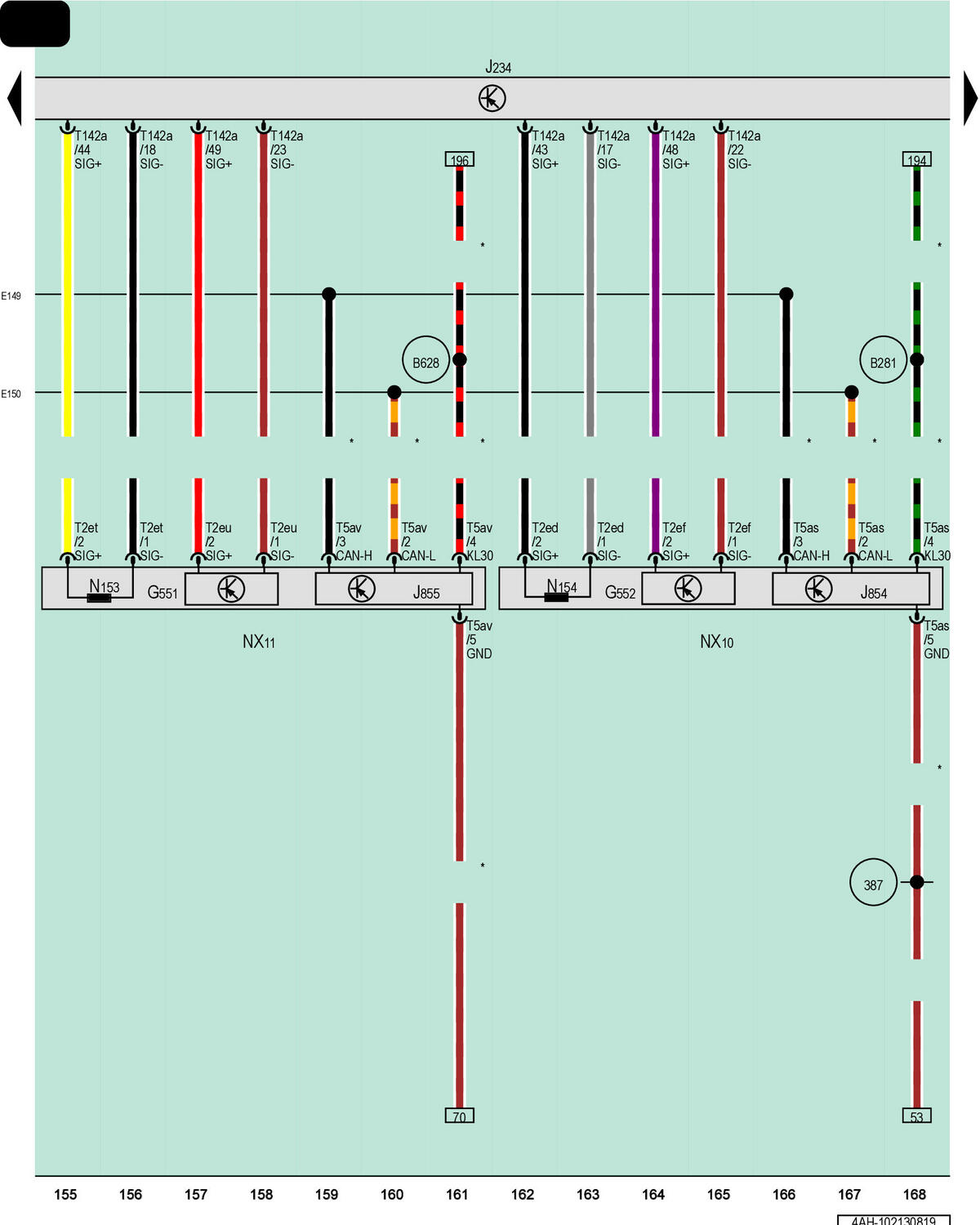

Airbag Control Module, Left Front Seat Belt, Right Front Seat Belt

GWW4AH-102130819Courtesy of AUDI OF AMERICA, LLC

G551

Driver Belt Force Limiter

G552

Front Passenger Belt Force Limiter

J234

Airbag Control Module

J854

Left Front Seat Belt Tensioner Control Module

J855

Right Front Seat Belt Tensioner Control Module

NX10

Left Front Seat Belt

NX11

Right Front Seat Belt

N153

Driver Seat Belt Tensioner Igniter 1

N154

Front Passenger Seat Belt Tensioner Igniter 1

T2ed

2-Pin Connector, Yellow

T2ef

2-Pin Connector, Yellow

T2et

2-Pin Connector, Yellow

T2eu

2-Pin Connector, Yellow

T5as

5-Pin Connector, Naturally Cloudy

T5av

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

387

Ground Connection 22 (in Main Wiring Harness)

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

B628

Positive Connection 4 (15) (in Main Wiring Harness)

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)

*

Optional Equipment
