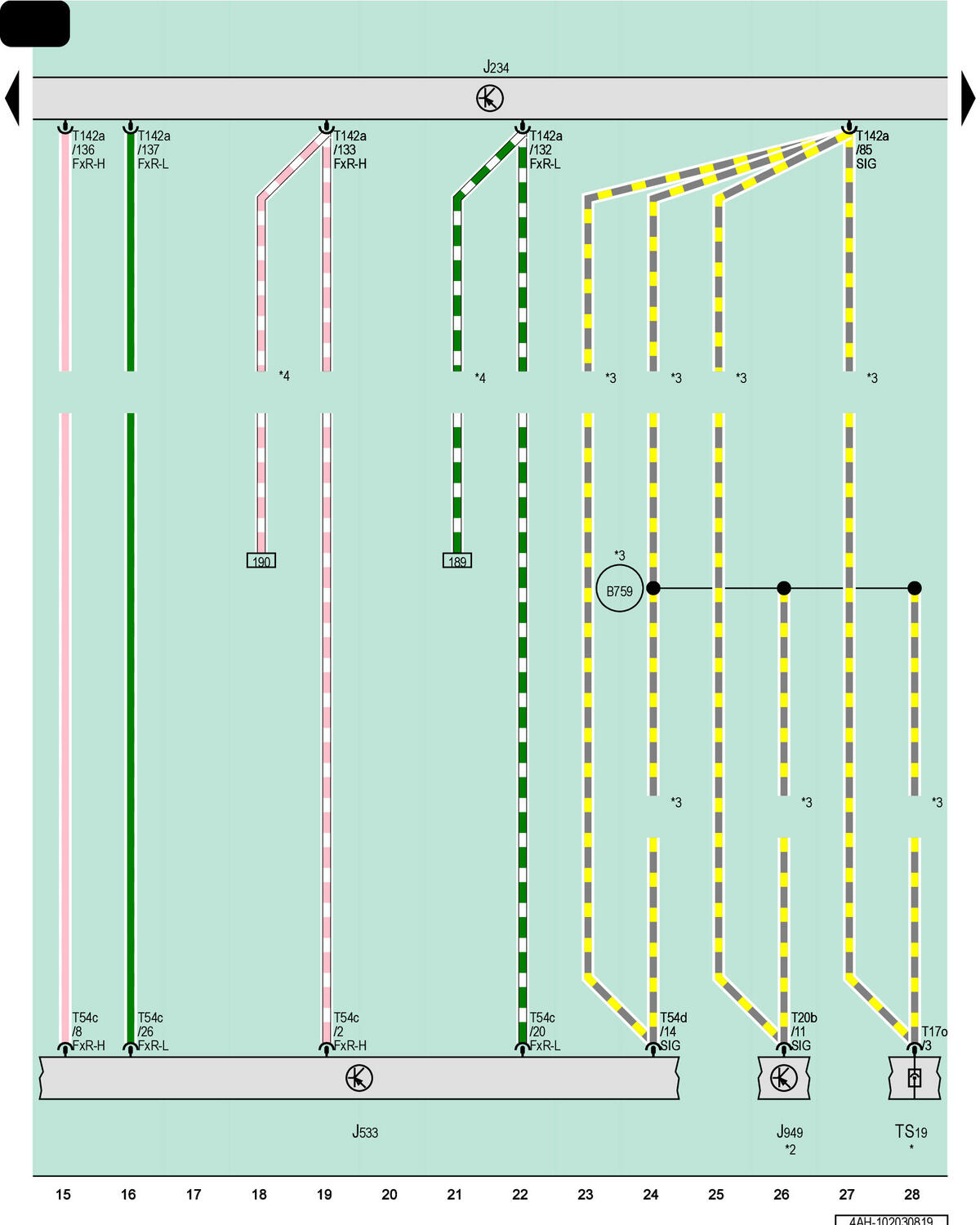

Airbag Control Module, Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J949

Control Module for Emergency Call Module and Communication Unit

T17o

17-Pin Connector, Red

T20b

20-Pin Connector, Black

T54c

54-Pin Connector, Black

T54d

54-Pin Connector, Blue

T142a

142-Pin Connector, Yellow

TS19

Front Passenger Seat Coupling Point

B759

Crash Signal Connection (in Main Wiring Harness)

*

Refer to Applicable Seat Adjustment Wiring Diagram

*2

For Vehicles with Emergency Call Module

*3

Depending on Equipment

*4

For Vehicles with Lane Change Assistance
