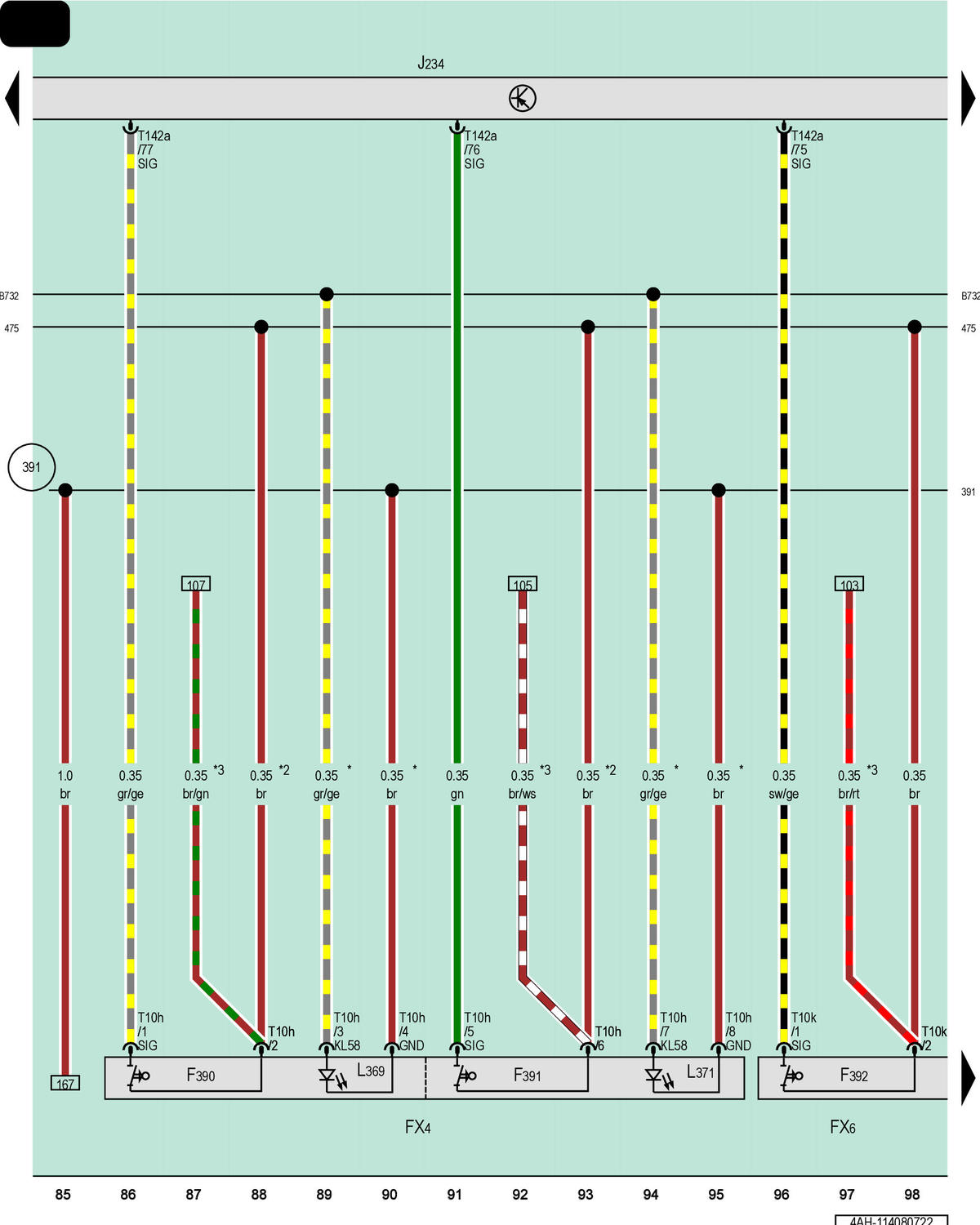

Dual Seat Belt Latch, Passenger Side Second Row Seat Belt, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

FX4

Dual Seat Belt Latch

FX6

Passenger Side Second Row Seat Belt

F390

Driver Side Second Row Seat Belt Switch

F391

Center Second Row Seat Belt Switch

F392

Passenger Side Second Row Seat Belt Switch

J234

Airbag Control Module

L369

Rear Driver Side Seat Belt Latch Lamp

L371

Center Rear Seat Belt Latch Lamp

T10h

10-Pin Connector, Black

T10k

10-Pin Connector, Black

T142a

142-Pin Connector, Yellow

391

Ground Connection 26 (in Main Wiring Harness)

475

Airbag Ground Connection (in Main Wiring Harness)

B732

Connection 58s (in Main Wiring Harness) 2

*

Optional Equipment

*2

For Vehicles Without Seat Occupant Detection System

*3

For Vehicles with a Seat Occupant Detection System
