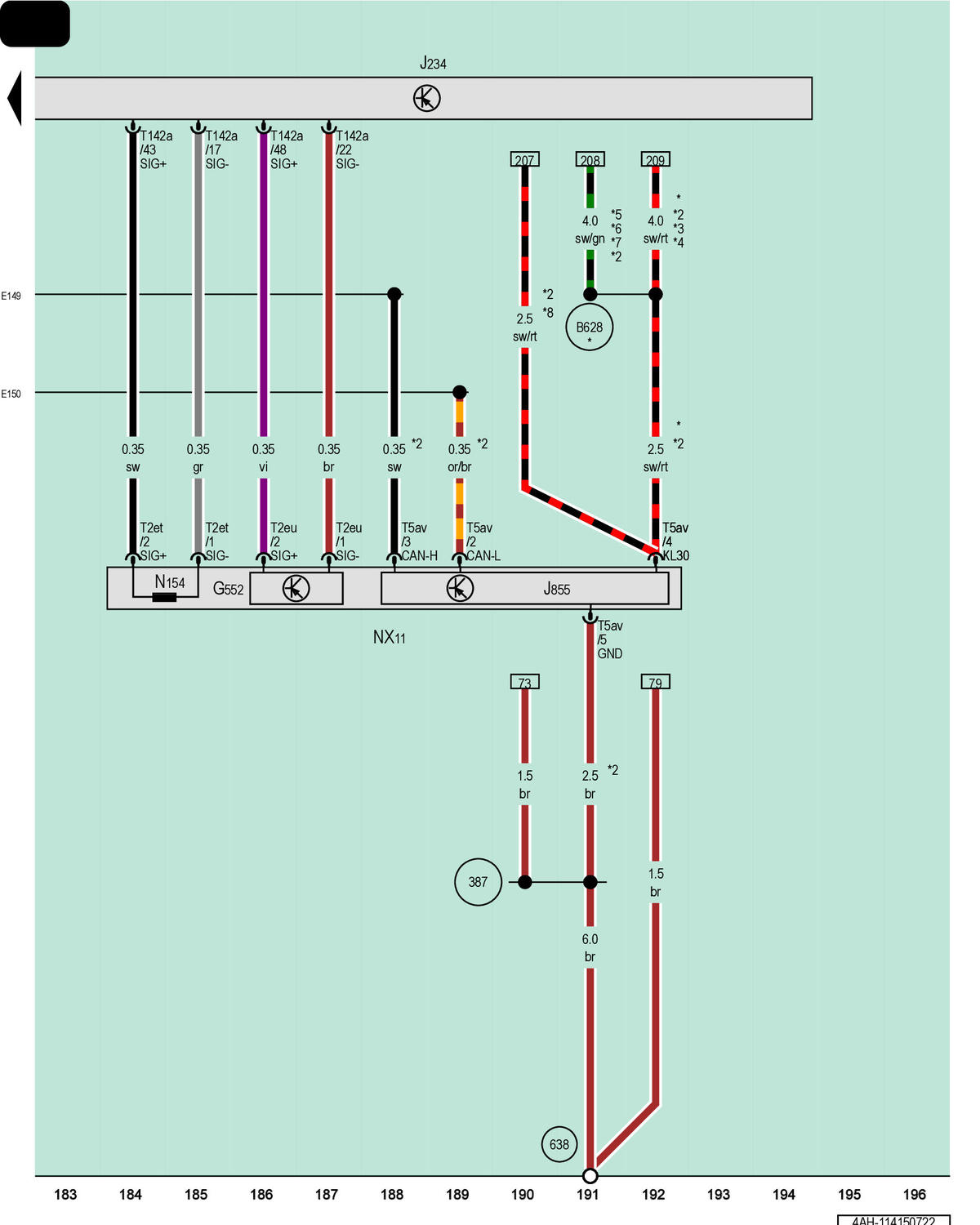

Airbag Control Module, Right Front Seat Belt

Courtesy of AUDI OF AMERICA, LLC

G552

Front Passenger Belt Force Limiter

J234

Airbag Control Module

J855

Right Front Seat Belt Tensioner Control Module

NX11

Right Front Seat Belt

N154

Front Passenger Seat Belt Tensioner Igniter 1

T2et

2-Pin Connector, Yellow

T2eu

2-Pin Connector, Yellow

T5av

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

387

Ground Connection 22 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

B628

Positive Connection 4 (15) (in Main Wiring Harness)

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)

*

Through August 2021

*2

Optional Equipment

*3

Through November 2020

*4

From March 2021

*5

From November 2020

*6

Through March 2021

*7

For Vehicles Without China Equipment

*8

From August 2021
