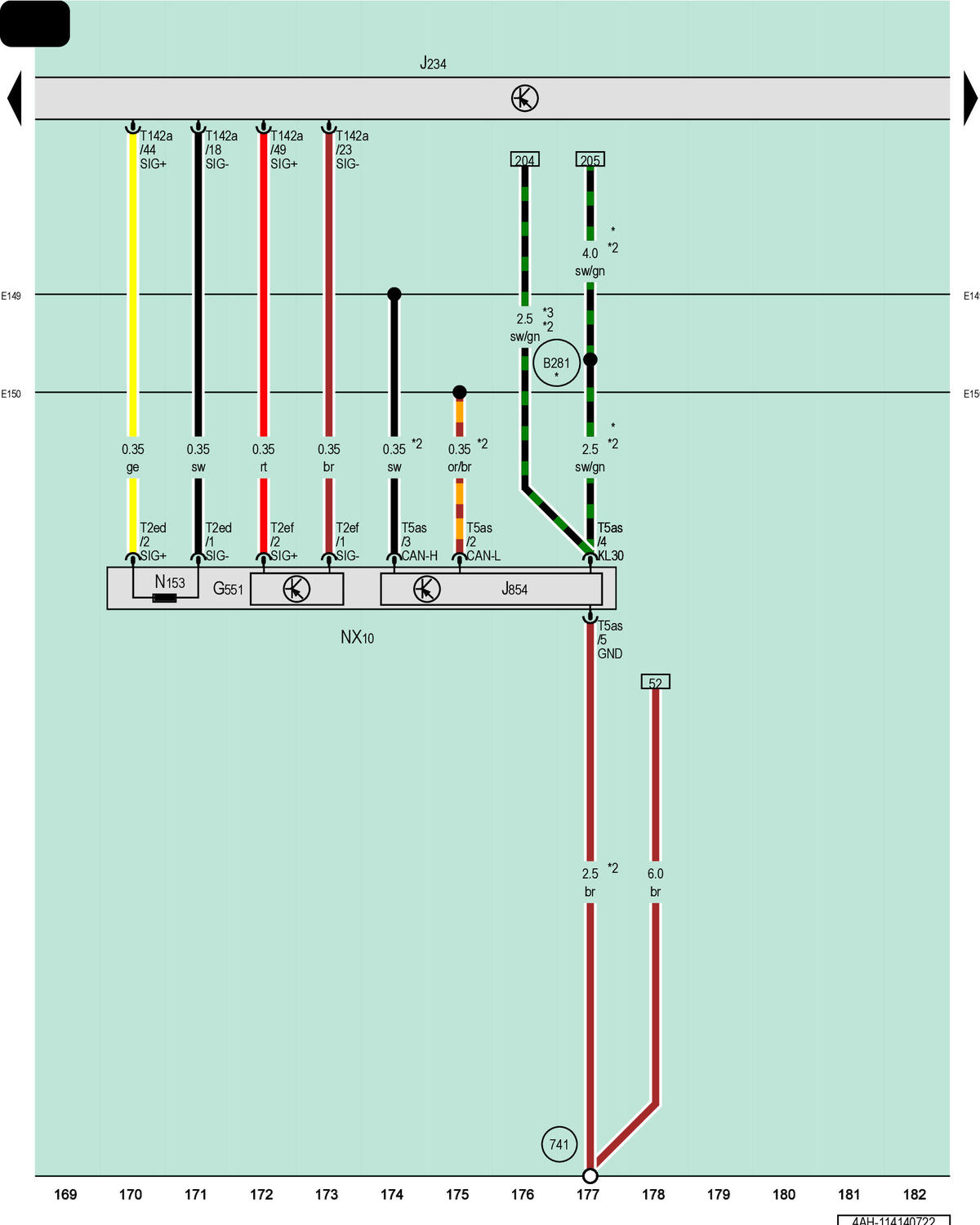

Airbag Control Module, Left Front Seat Belt

Courtesy of AUDI OF AMERICA, LLC

G551

Driver Belt Force Limiter

J234

Airbag Control Module

J854

Left Front Seat Belt Tensioner Control Module

NX10

Left Front Seat Belt

N153

Driver Seat Belt Tensioner Igniter 1

T2ed

2-Pin Connector, Yellow

T2ef

2-Pin Connector, Yellow

T5as

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

741

Ground Connection Under Left Front Seat

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)

*

Through August 2021

*2

Optional Equipment

*3

From August 2021
