Exhaust Door Control Unit -J883-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

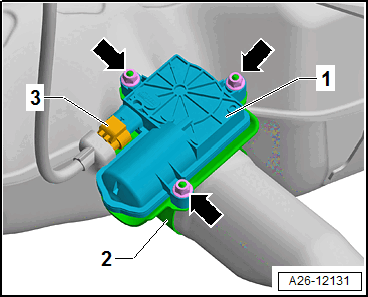

GWWA26-12131Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Remove the nuts -arrows-.

-- Remove the exhaust door control unit -1- from the exhaust door -2-
