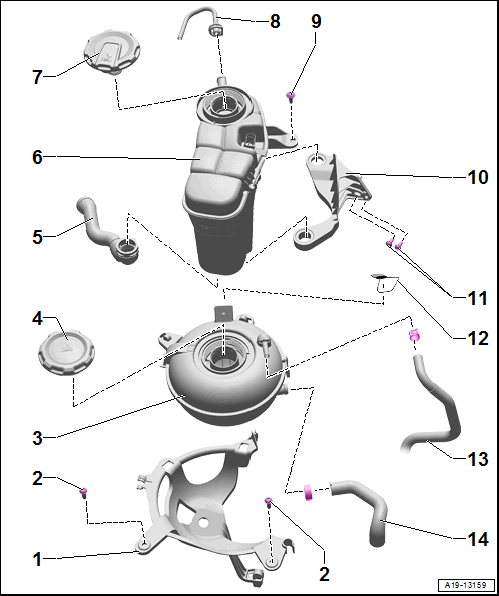

Overview - Coolant Expansion Tank
WARNING: This page is about a different car, the 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Audi A6/A7
- Bracket
- Vehicles with a high-voltage system
- Bolts
- 5 Nm
- High-Voltage System Cooling Circuit Coolant Expansion Tank
- Vehicles with a high-voltage system
- Removing and Installing. Refer to COOLANT EXPANSION TANK FOR HIGH-VOLTAGE SYSTEM COOLING CIRCUIT, REMOVING AND INSTALLING .
- Cap
- Vehicles with a high-voltage system
- Check the pressure relief valve. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Coolant Hose
- Coolant Expansion Tank for Engine Coolant Circuit
- Removing and Installing. Refer to COOLANT EXPANSION TANK FOR ENGINE COOLANT CIRCUIT, REMOVING AND INSTALLING .
- Cap
- Check the pressure relief valve. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Coolant Hose
- Bolt
- 7 Nm
- Bracket
- Bolts
- 7 Nm
- Seal
- Vehicles with a high-voltage system
- Applying on the cap. Refer to Attaching the seal, Audi A6/A7: .
- Coolant Hose
- Vehicles with a high-voltage system
- Coolant Hose
- Vehicles with a high-voltage system
