Right Coolant Pipes On Longitudinal Member, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to DRAIN THE COOLANT .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

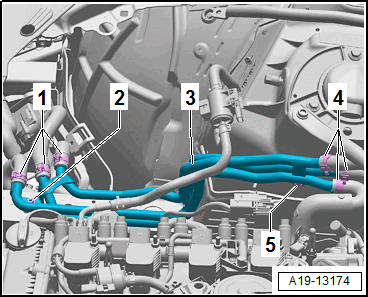

-- Remove the nuts -2 and 5-.
CAUTION:
There is a risk of damaging the straps on the plastic coolant pipes if they are handled incorrectly.
- Counterhold at the coolant pipe when disconnecting and connecting the coolant hose.
-- Loosen the hose clamps -1 and 4- and remove the coolant hoses.
-- Remove the coolant pipe -3-.
