Engine, Removing, 3.0L Engine

Special tools and workshop equipment required

Engine Bung Set:VAS6122

Fig 1: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table:VAS6131B

Fig 2: Scissor Lift Table (VAS6131B)
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table - Audi Set:VAS6131/10

Fig 3: Identifying Scissor Lift Table - Audi Set VAS 6131/10
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table - A8 Set - Adapter:VAS6131/11-1 from Scissor Lift Table - A8 Set:VAS6131/11 , not illustrated
Universal Supports:VAS6131/13-2 from Scissor Lift Table - Q7 Set:VAS6131/13

Fig 4: Identifying Scissor Lift Table - Q7 Set VAS 6131/13
Courtesy of AUDI OF AMERICA, LLC
Shop Crane - Drip Tray:VAS6208

Fig 5: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6340

Fig 6: Hose Clip Pliers VAS6340
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362

Fig 7: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack:VAS6931

Fig 8: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
Ball Joint Splitter:VAS251805

Fig 9: Ball Joint Splitter (kukko 129-3)
Courtesy of AUDI OF AMERICA, LLC
Ball Joint Splitter:VAS251809 with :VAS251809/1

Fig 10: Ball Joint Splitter
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap:T10038

Fig 11: Identifying Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Commercially available Step Ladder

Procedure

With the lock carrier installed, the engine is removed downward with the transmission and subframe.
Install cable ties at the same locations when installing.
Pay attention to the guidelines for clean working conditions. Refer to appropriate Service Information .
All chassis component bolts with bonded rubber bushings on vehicles with coil spring in the curb weight position (unloaded condition) or on vehicles with air suspension must be tightened in control position.
Bonded rubber bushings have a limited range of rotation. Axle components with bonded rubber bushings must be brought into the position they will be in when driving before they are tightened (curb weight position or control position). Otherwise, the bonded rubber bushing will be under stress, which will reduce the service life.

-- Before starting the procedures, determine the curb weight position (refer to appropriate Service Information or determine the control position (refer to appropriate Service Information ).

-- Move the wheels so that they are straight.

-- Switch off the ignition.

The electro-mechanical parking brake must be released before disconnecting battery so the driveshaft can be rotated to remove it.

-- De-energize the 48 Volt system and disconnect the battery. Refer to BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITH HIGH-VOLTAGE SYSTEM, (0K3) .

-- LHD: Remove the right cover -1- toward the rear in direction of -arrows- and remove.

Courtesy of AUDI OF AMERICA, LLC

-- RHD: Remove the left cover -1- toward the rear -arrows- and remove.

Fig 12: Coolant Expansion Tank

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The cooling system is under pressure when the engine is warm. There is a risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.

-- Open the coolant expansion tank cap -1- by releasing the catch -arrow-.

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

-- Remove the front wheels. Refer to WHEELS AND TIRES .

-- Remove the left and right wheel spoiler and the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- Place the Shop Crane - Drip Tray:VAS6208 underneath.

Courtesy of AUDI OF AMERICA, LLC

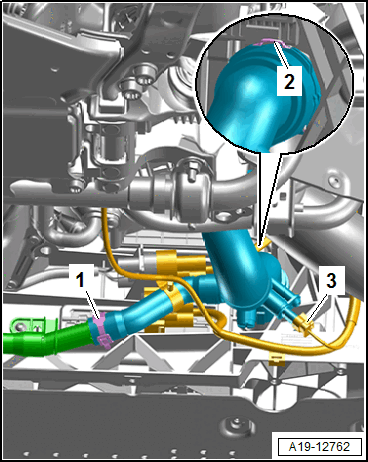

-- Disconnect the connector -3- for the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.

-- Lift the clamp -2-, remove the coolant hose from the radiator and allow the coolant to drain.

CAUTION:

There is a risk of damaging the straps on the plastic coolant pipes if they are handled incorrectly.

- Counterhold at the coolant pipe when disconnecting and connecting the coolant hose.

-- Loosen the hose clamp -1- and remove the coolant hose.

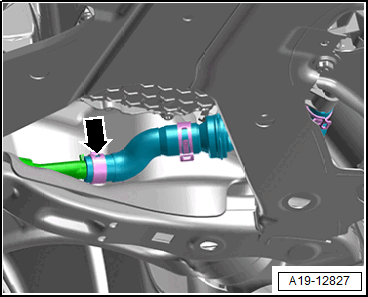

-- Open the hose clamp -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant hose from the right coolant pipe, hold it downward, and allow the coolant to drain (shown for LHD vehicle).

-- Carefully pull the engine cover off the retaining pins one after the other in direction of -arrows-. Do not pull sharply on the engine cover or pull it to one side.

Fig 13: Engine Cover 3.0L TFSI

Courtesy of AUDI OF AMERICA, LLC

-- If the engine and transmission must be separate, remove the ball pins and bolts -arrows- and remove the heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Courtesy of AUDI OF AMERICA, LLC

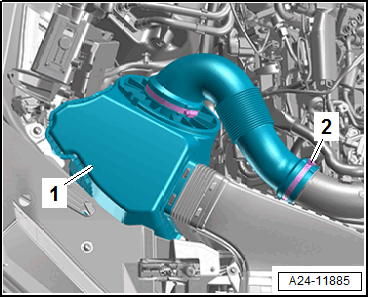

-- Loosen the hose clamp -2- and remove the air duct pipe.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the air filter housing -1- upward and remove it.

-- Disconnect the fuel hose -1-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

-- Always seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS6122 .

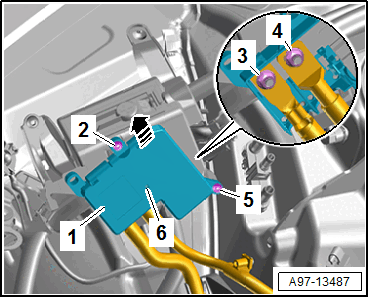

-- Release the catch through the opening -6- using a small screwdriver and open the cover -1- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

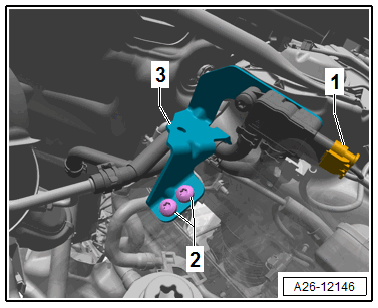

-- Remove the nut -3- and free up the wire.

-- Remove the bolts -2 and 5- and move the Terminal 40 Wire Junction -TV66- to the side.

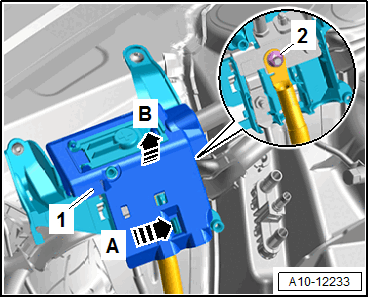

-- Release the catch in direction of -arrow A- and open the E-box -1- in direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and free up the B+ wire.

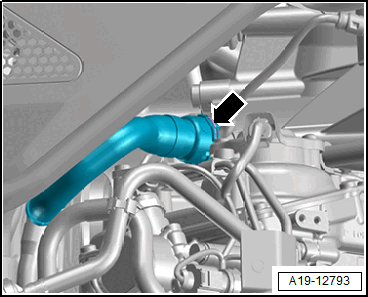

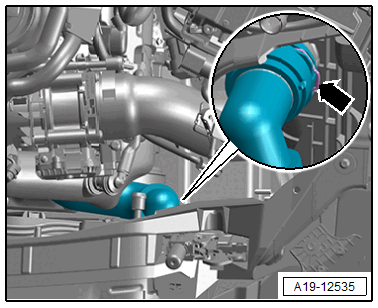

-- Lift the clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with a Particulate Filter:

Courtesy of AUDI OF AMERICA, LLC

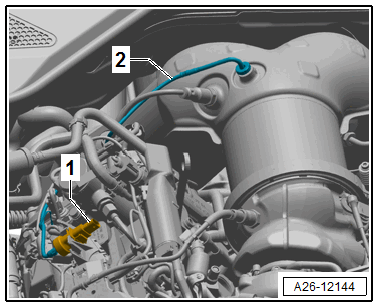

-- Disconnect the connector -1- for the Exhaust Gas Temperature Sensor 3 -G495-.

-- If the engine and transmission are disconnected: remove the connector from the bracket and free up the wire.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3- for the Charge Air Pressure Sensor -G31-.

-- Lift the clamp -2- and disconnect the coolant ventilation line.

-- Loosen the hose clamp -1- and remove the air duct pipe and tie up to the left side.

-- Lift the clip -arrow- and remove the upper left coolant hose from the radiator.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -arrow- and remove the vacuum hose -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2- and free them up.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches in direction of -arrows- and move the Engine Control Module -J623- -3- to the side.

-- Remove the connector -arrow- from the bracket and disconnect them and then free up the wires.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with a Particulate Filter:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- for the Particulate Filter Differential Pressure Sensor - G1037-.

-- If engine and transmission are to be separated, remove the bolts -2- and free up the bracket -3- with the differential pressure sensor.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -1- and remove the right air duct hose.

-- Loosen the hose clamp -2- and remove the coolant hose from the Coolant Recirculation Pump -V50-.

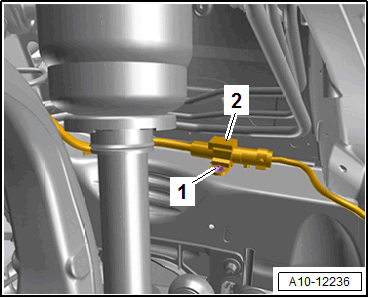

-- Remove screw -1- and disconnect harness connector -2-.

Courtesy of AUDI OF AMERICA, LLC

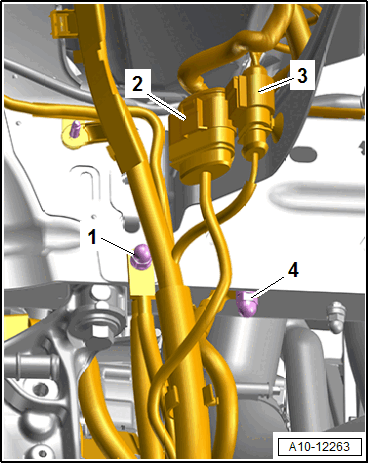

-- Remove the connectors -2 and 3- from the bracket and disconnect.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 4- and free up the ground wires.

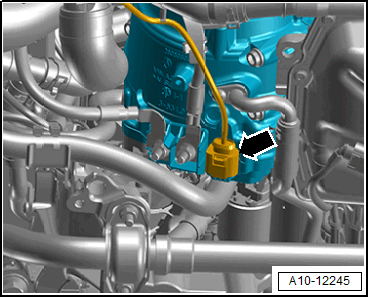

-- Disconnect the connector -arrow- on the starter generator.

Courtesy of AUDI OF AMERICA, LLC

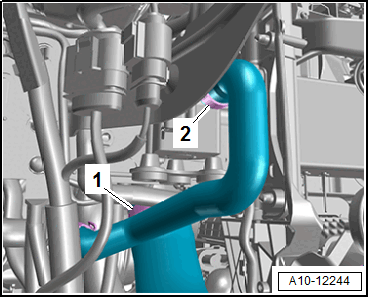

-- Loosen the hose clamp -1-, lift the clip -2-, and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of damaging the joints on the upper control arm with a load that is too heavy.

- Support the wheel bearing housing.

-- Engage the left and right Engine Support Bridge - Special Hook (2 pc.):10-222A/20 to the body, and tie up the wheel bearing housing as shown using the Tensioning Strap:T10038

-- To protect the threads, remove the nut -arrow- on the left and right side from the tie rod end joint pin until it is flush with the joint pin threads.

Courtesy of AUDI OF AMERICA, LLC

To prevent damage to the ball joint puller, both pry arms on the pull must be parallel to each other when the most force is applied.

CAUTION:

Abruptly loosening the tie rod end when removing increases the risk of injury.

It is possible that parts of the body may become bruised.

- Secure the tool with the engine and gearbox jack placed underneath.

-- Remove the left and right tie rod end with the Ball Joint Splitter:VAS251805 from the wheel bearing housing.

-- Remove the nut to do so if necessary counterhold on the joint pin with a 6 mm inner hex socket.

-- To protect the threads, remove the nut -arrow- on the left and right from the guide link joint pin just until it is flush with the joint pin threads. If necessary counterhold the joint pin.

Courtesy of AUDI OF AMERICA, LLC

To prevent damage to the ball joint puller, both pry arms on the pull must be parallel to each other when the most force is applied.

CAUTION:

Abruptly loosening the ball joint when removing increases the risk of injury.

It is possible that parts of the body may become bruised.

- Secure the tool with the engine and gearbox jack placed underneath.

-- Remove the left and right guide link joint pin from the conical seat using the Ball Joint Splitter:VAS251809 with Ball Joint Splitter:VAS251809/1 . Do not damage the CV boot while doing this.

-- Remove the nut and free up the guide link on the wheel bearing housing. If necessary, counterhold the joint pin with a TX 40 socket to do this.

-- Loosen the subframe shield and push it slightly to the side. Refer to appropriate Service Information .

-- Equipped on some models: disconnect the left and right connector -3- for the level control system sensor and free up the wire.

Fig 14: Identifying Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and free up the coupling rod.

-- Clean the steering gear and the subframe near the boot.

Fig 15: Identifying Power Steering Gear Boot

Courtesy of AUDI OF AMERICA, LLC

-- Open the spring clamp -3- using the Hose Clip Pliers:VAS6362 .

-- Remove the clamp -1- and remove the boot -2- outward from the steering gear.

-- Disconnect the threaded connections -1 and 3- for the control arm.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the control arm toward the front.

To remove the bolt -1-, push the steering all the way to the left or right.

-- Repeat the procedure on the other side of the vehicle.

-- Remove the left and right nut -3- and the bolt -1- for the coupling rod -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Detach the left and right drive axles from the transmission. Refer to appropriate Service Information .

-- Remove the steering intermediate shaft from the steering gear and push together. Refer to appropriate Service Information .

-- Remove the ribbed belt from the A/C compressor belt pulley. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the A/C compressor from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying due to electrostatic discharge.

- Do not touch the connector terminals by hand.

- Touch a ground (for example the hoist) and discharge the static electricity.

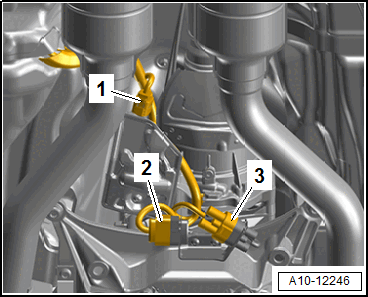

-- Disconnect the connectors -1, 2 and 3-.

-- Remove the left front muffler nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

Fig 16: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the coupling due to improper handling.

- Coupling must not be bent more than 10°.

- Do not load the coupling on the cable.

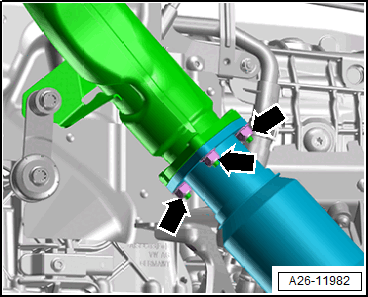

-- Remove the bolts -arrows- and the left front muffler.

-- If the engine and transmission must be separated, remove the left and right bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

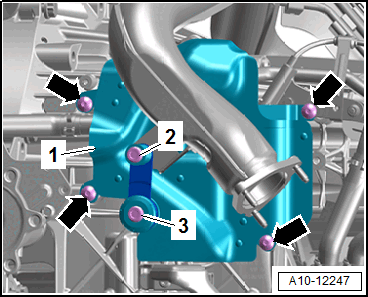

-- Remove the bolts -arrows- and move the heat shield -1- to the side.

-- Remove the bolt -2- and nut -3- and free up the parking lock emergency release cable -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the front area of the left and right center underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

Scissor Lift Table, Preparing:

Fig 17: Scissor Lift Chart

Courtesy of AUDI OF AMERICA, LLC

-- Equip the Scissor Lift Table:VAS6131B as follows:

Table Coordinates	Parts from the Scissor Lift Table - Audi Set :VAS6131/10 , Scissor Lift Table - A8 Set Adapter 1:VAS6131/11-1 and Scissor Lift Table - Audi Set Universal Supports:VAS6131/13-2
C4	/10-1	/10-4	/10-5	/10-11
E4	/10-1	/10-4	/10-5	/10-11
C14	/10-1	/10-3	/10-5	/11-1
E14	/10-1	/10-3	/10-5	/10-6
E17	/10-1	/10-2	/10-5	/13-2

-- Secure the mounting elements to the scissor lift table by hand.

-- Position the Scissor Lift Table:VAS6131B so it is level.

Note the bubble level (sight glass) on support platform.

-- Guide the Scissor Lift Table:VAS6131B under the engine/transmission subassembly.

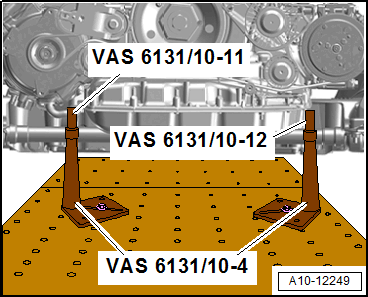

-- Position the mounting element from the Scissor Lift Table - Audi Set :VAS6131/10 on the left and right on the engine.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the threaded spindles are completely screwed in.

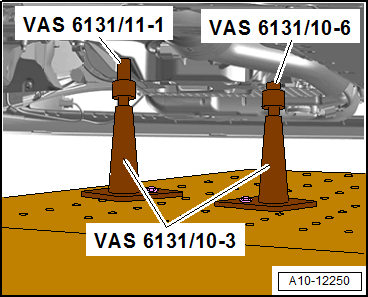

-- Place the mounting element from the Scissor Lift Table - Audi Set:VAS6131/10 and Scissor Lift Table - A8 Set - Adapters:VAS6131/11-1 on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Support the right front muffler with mounting element from the Scissor Lift Table - Audi Set :VAS6131/10 and Scissor Lift Table - Q7 Set Universal Supports:VAS6131/13-2 .

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the remaining mounting element spindles upward until all the mounting pins come in contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the Scissor Lift Table:VAS6131B .

-- Secure the subframe. Refer to appropriate Service Information .

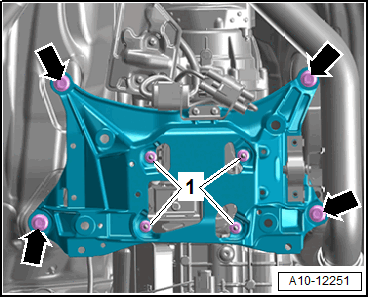

-- Remove the bolts -arrows- on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the lines and hoses, as well as the engine compartment by lowering the engine/transmission assembly.

- Make sure all connections between the engine, transmission, subframe and body have been disconnected.

- Carefully guide the engine/transmission assembly with the subframe out of engine compartment when lowering.

-- Lower the Scissor Lift Table:VAS6131B with the engine/transmission assembly and remove from under the vehicle.

-- Tie up the drive axles.
