Engine, Removing From Scissor Lift Table, 2.9L Engine

Special tools and workshop equipment required

Lifting Tackle:3033

Fig 1: Lifting Tackle (3033)
Courtesy of AUDI OF AMERICA, LLC
Shop Crane:VAS6100

Fig 2: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Lift Arm Extension:VAS6101

Fig 3: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI OF AMERICA, LLC

Procedure

Engine/transmission assembly removed and separated on Scissor Lift Table:VAS6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING, 2.9L ENGINE .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of injury due to the engine weight shifting.

The possibility for parts of the body to be pinched or crushed increases.

- Transport the engine only without the transmission using the method described.

-- Attach the Lift Arm Extension:VAS6101 to the Shop Crane:VAS6100 .

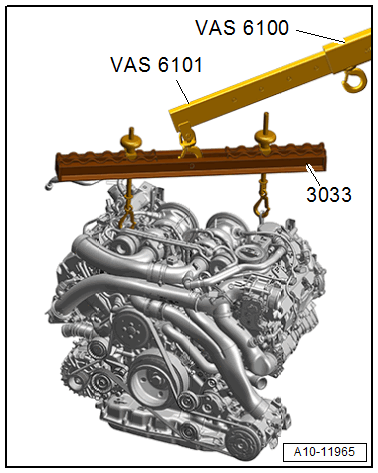

-- Engage the Lifting Tackle: 3033 as shown in the engine lifting eyes and on the shop crane.

-- Pry up the engine with the workshop crane.
