A/C Compressor Bracket, Removing And Installing, 2.9L Engine: Removing

-- Remove the A/C compressor from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

-- Remove the ribbed belt tensioner for the A/C compressor. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

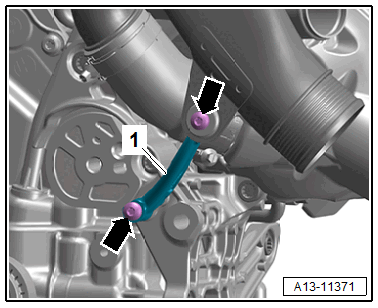

-- Remove the bolts -arrows- and the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

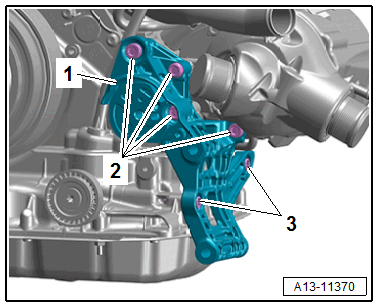

-- Remove the bolts -2 and 3- and the bracket -1- for the A/C compressor.

Fig 1: A/C Compressor Bracket - Tightening Specifications and Sequence, 2.9L Engine

Courtesy of AUDI OF AMERICA, LLC
