A/C Compressor Ribbed Belt, Removing And Installing, 2.9L Engine With Radiator Removed: Removing

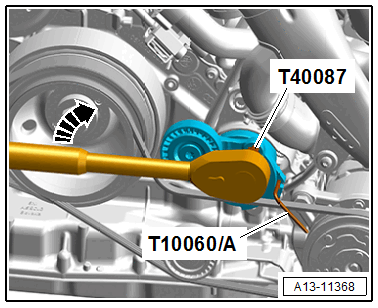

GWWA13-11368Courtesy of AUDI OF AMERICA, LLC

-- Turn the tensioner clockwise -arrow- using the Torx Socket - T60:T40087  to release the tension on the ribbed belt.

-- Lock the tensioner using the Locking Pin:T10060A  and remove the ribbed belt.
