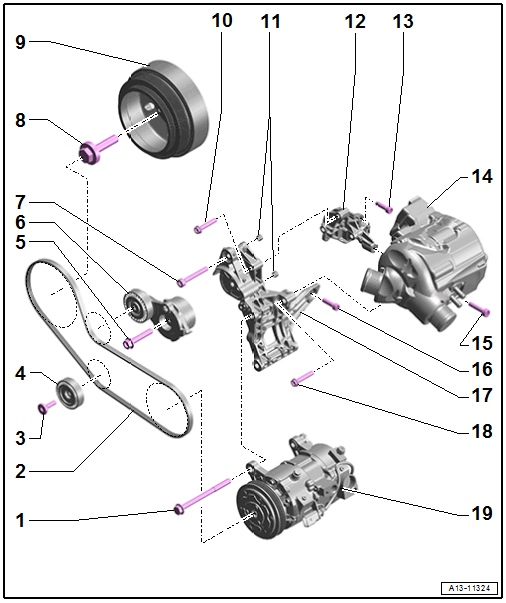

Overview - Cylinder Block, Belt Pulley Side, A/C Compressor Belt Drive, 2.9L Engine With Electrical Compressor
- Bolt
- Tightening specification. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- Ribbed Belt
- Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE .
- Idler Roller
- For the ribbed belt
- Bolt
- Tightening specification. Refer to OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE .
- Tensioner
- For the ribbed belt
- Removing and installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Bolt
- Tightening specification. Refer to OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE .
- Vibration Damper
- Removing and Installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Alignment Sleeves
- Bracket
- For electrical compressor
- Removing and Installing. Refer to ELECTRICAL COMPRESSOR BRACKET, REMOVING AND INSTALLING .
- Bolt
- Tightening specification Refer to Fig 3.
- Electrical Compressor
- Overview. Refer to OVERVIEW - ELECTRICAL COMPRESSOR WITH Electric Compressor Control Module -J1123- .
- Bolt
- Tightening specification -item 12- OVERVIEW - ELECTRICAL COMPRESSOR WITH Electric Compressor Control Module -J1123- => List Item:Bolt .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Bracket
- For the A/C compressor
- Removing and installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- A/C Compressor
- Overview. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
A/C Compressor Bracket - Tightening Specifications and Sequence, 2.9L Engine
-- Tighten the bolts in stages as follows:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -2 and 3- | Install all the way by hand |
| 2. | -2 and 3- | 22 Nm |
Electrical Compressor Bracket - Tightening Specification and Sequence
-- Tighten the bolts in stages as follows:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 and 2- | Install all the way by hand |
| 2. | -1 and 2- | 22 Nm |
