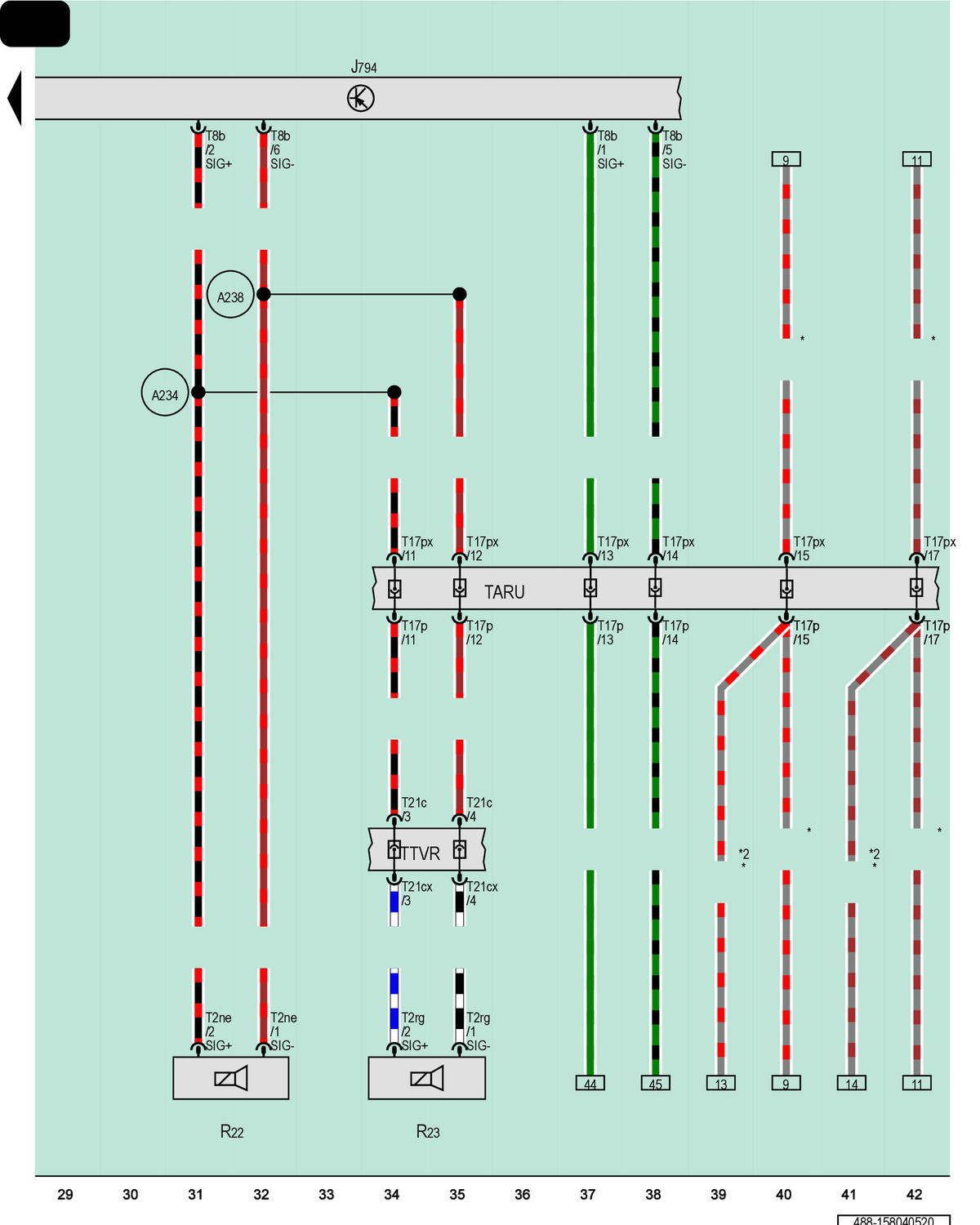

Information Electronics Control Module 1, Right Front Treble Speaker, Right Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R22

Right Front Treble Speaker

R23

Right Front Bass Speaker

T2ne

2-Pin Connector, Black

T2rg

2-Pin Connector, Black

T8b

8-Pin Connector, Brown

T17p

17-Pin Connector, Black

T17px

17-Pin Connector, Black

T21c

21-Pin Connector, Black

T21cx

21-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

TTVR

Right Front Door Coupling Point

A234

Rear Speaker Positive Connection 1 (in Right Speaker Wiring Harness)

A238

Rear Speaker Negative Connection 1 (in Right Speaker Wiring Harness)

*

For Vehicles with Audi Sound System

*2

For Vehicles with Hybrid Drive
