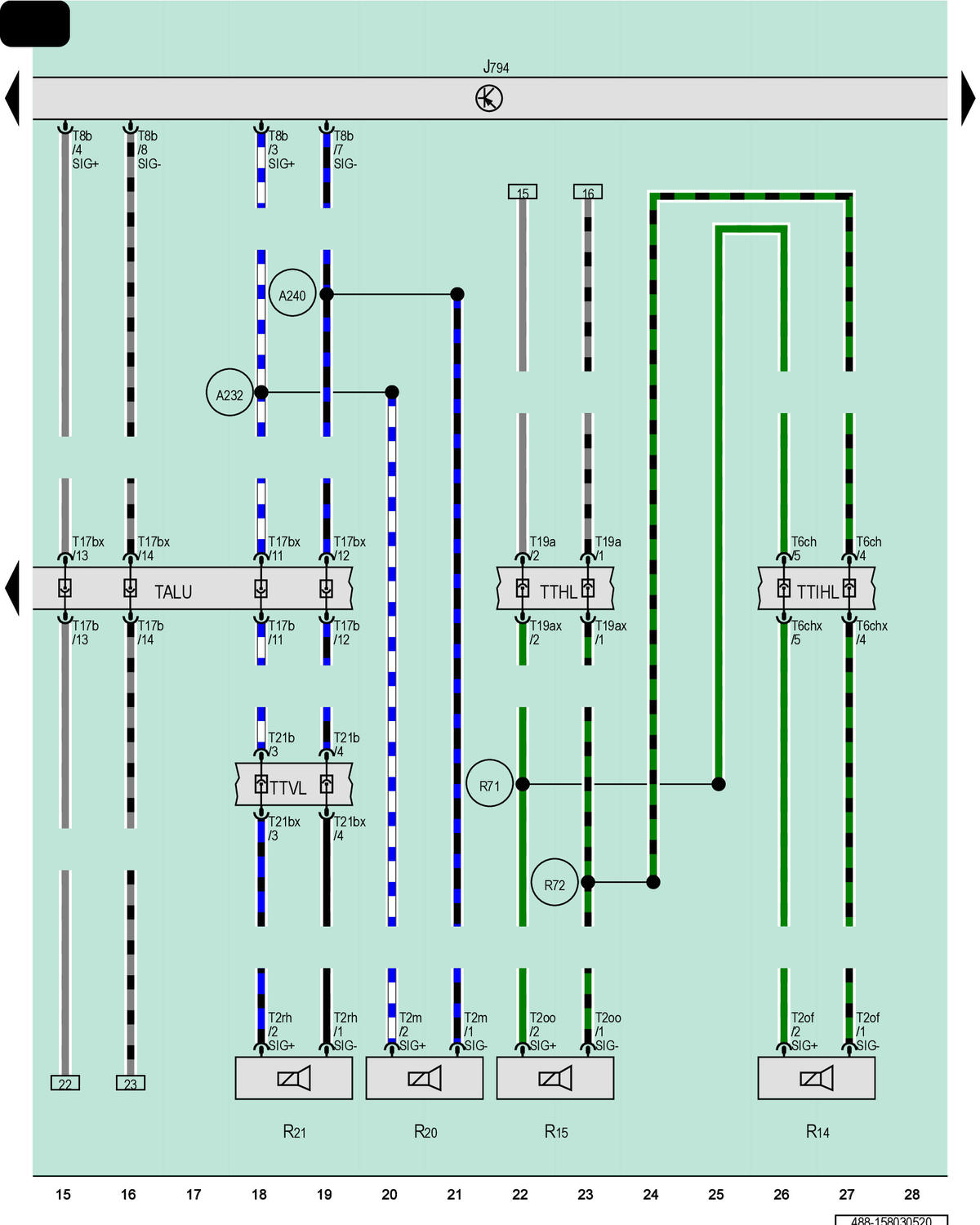

Information Electronics Control Module 1, Left Rear Treble Speaker, Left Front Treble Speaker
J794
Information Electronics Control Module 1
R14
Left Rear Treble Speaker
R15
Left Rear Bass Speaker
R20
Left Front Treble Speaker
R21
Left Front Bass Speaker
T2m
2-Pin Connector, Black
T2of
2-Pin Connector, Black
T2oo
2-Pin Connector, Black
T2rh
2-Pin Connector, Black
T6ch
6-Pin Connector, Red
T6chx
6-Pin Connector, Red
T8b
8-Pin Connector, Brown
T17b
17-Pin Connector, Blue
T17bx
17-Pin Connector, Blue
T19a
19-Pin Connector, Black
T19ax
19-Pin Connector, Black
T21b
21-Pin Connector, Black
T21bx
21-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
TTHL
Left Rear Door Coupling Point
TTIHL
Coupling Point in Left Rear Door
TTVL
Left Front Door Coupling Point
A232
Rear Speaker Positive Connection 1 (in Left Speaker Wiring Harness)
A240
Rear Speaker Negative Connection 1 (in Left Speaker Wiring Harness)
R71
Speaker Positive Connection (in Left Rear Door Wiring Harness)
R72
Speaker Negative Connection (in Left Rear Door Wiring Harness)
