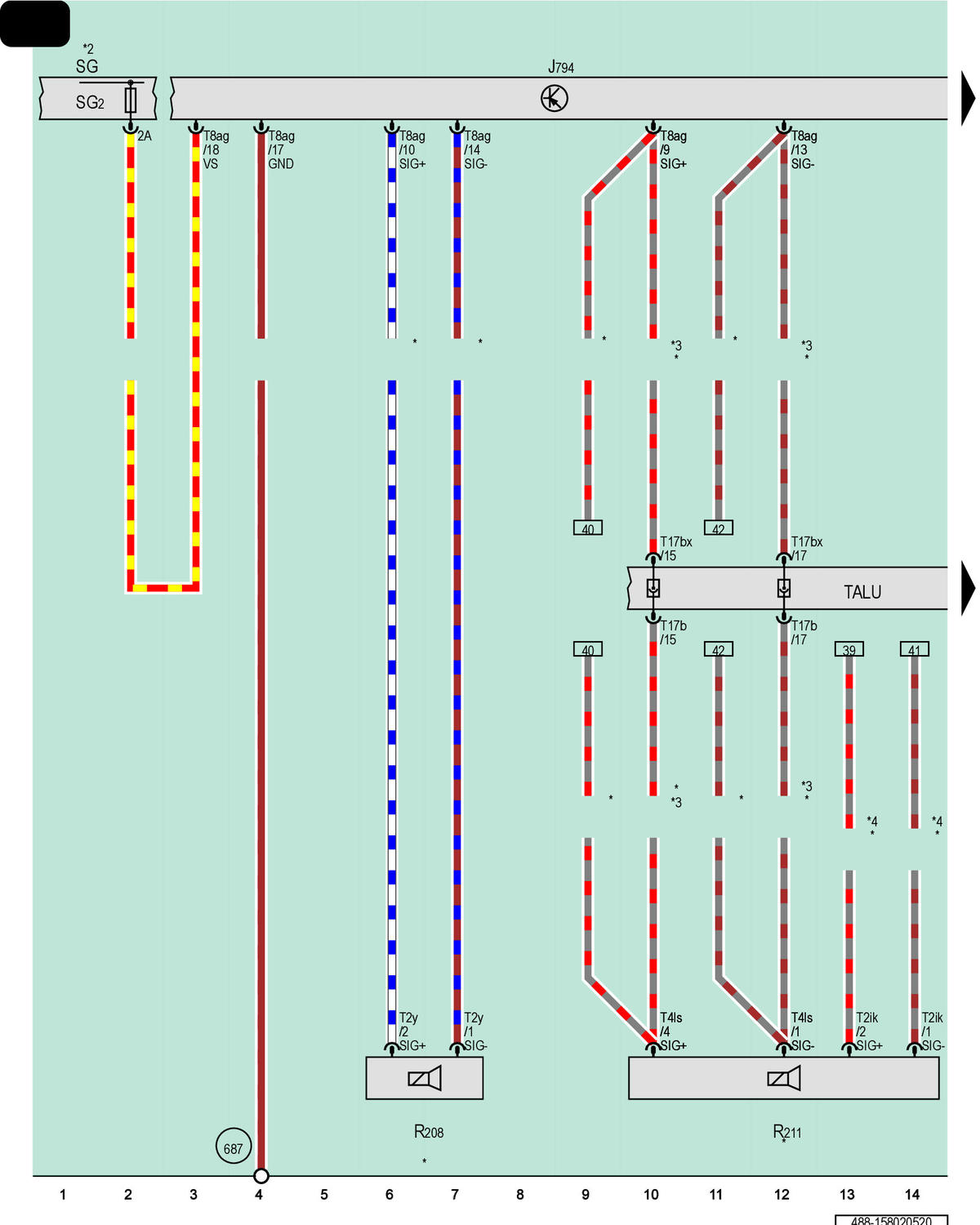

Information Electronics Control Module 1, Center Speaker, Subwoofer

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R208

Center Speaker

R211

Subwoofer

Fuse Panel G

SG2

Fuse 2 on Fuse Panel G

T2ik

2-Pin Connector, Black

T2y

2-Pin Connector, Blue

T4ls

4-Pin Connector, Brown

T8ag

8-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

687

Ground Connection 1 on Center Tunnel

For Vehicles with Audi Sound System

Refer to Applicable Wiring Diagram for Fuse Positions

For Vehicles with 48 V System

For Vehicles with Hybrid Drive
