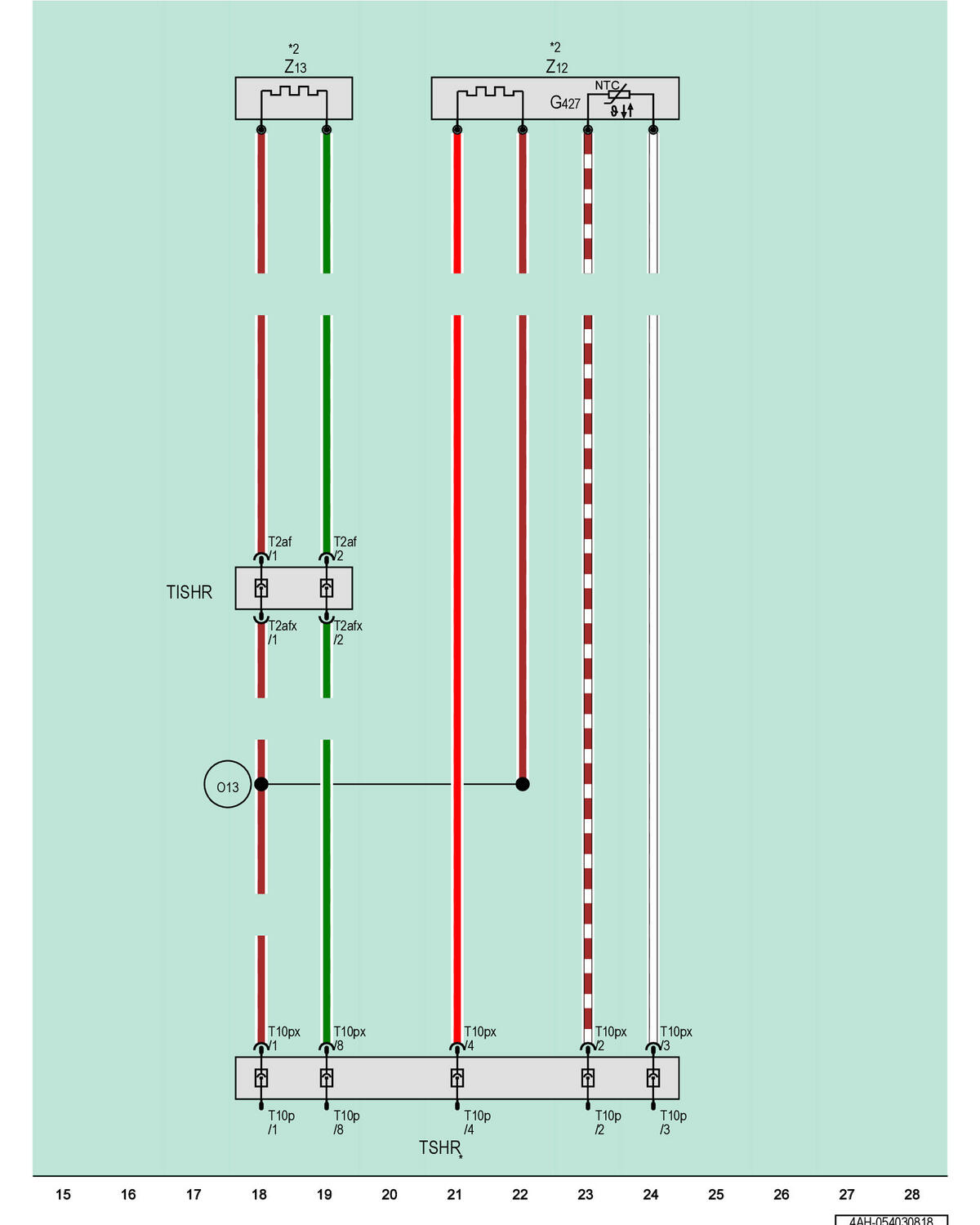

Right Rear Bench Seat Heating Element, Right Rear Backrest Heating Element
G427
Passenger Side Rear Seat Temperature Sensor
T2af
2-Pin Connector, Black
T2afx
2-Pin Connector, Black
T10px
10-Pin Connector, White
TISHR
Coupling Point in Right Rear Seat
TSHR
Right Rear Seat Coupling Station
Z12
Right Rear Bench Seat Heating Element
Z13
Right Rear Backrest Heating Element
O13
Connection 2 (in Heated Seats Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Pre-Wired Component
