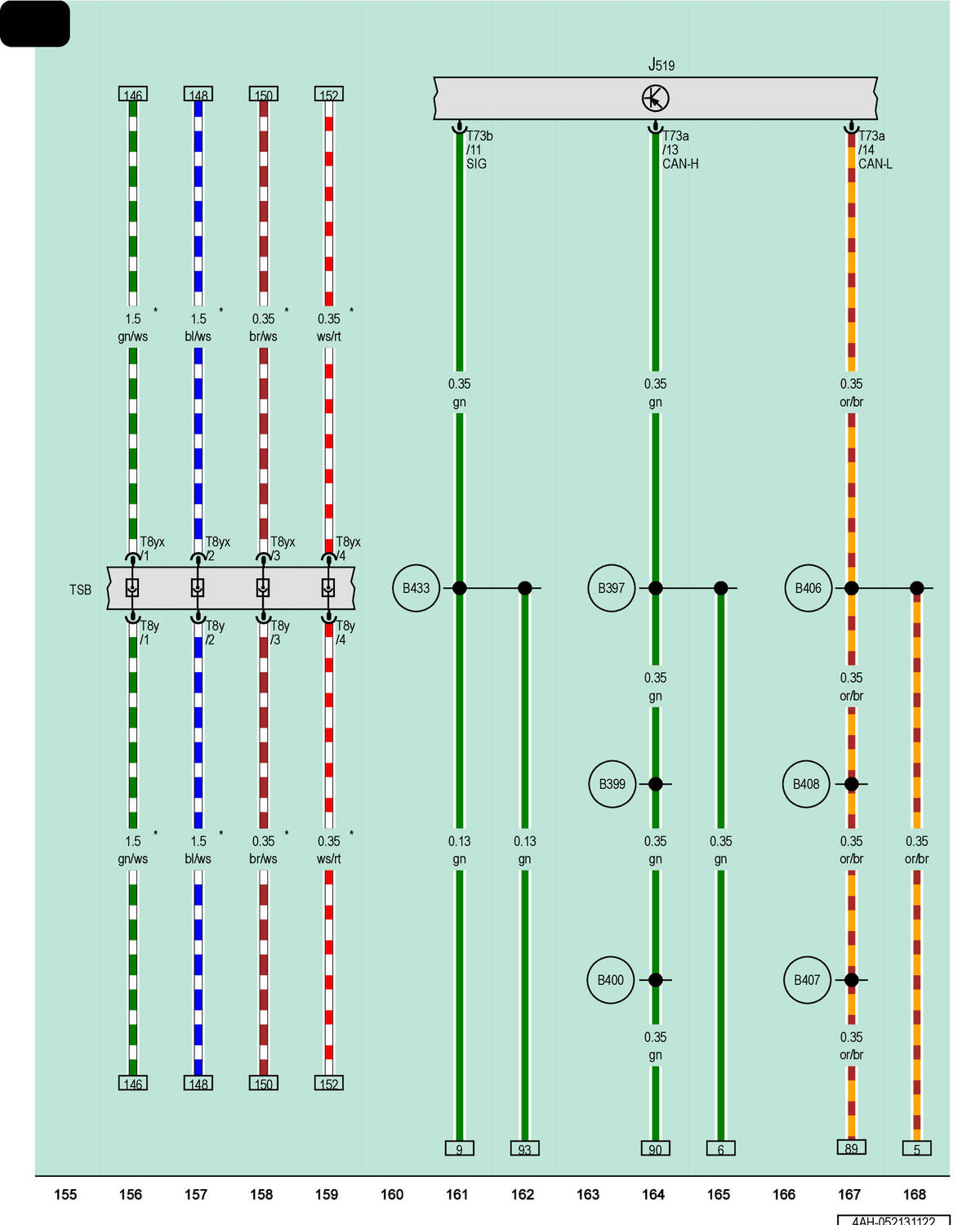

Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

T8y

8-Pin Connector, Black

T8yx

8-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

TSB

Front Passenger Seat Backrest Coupling Point

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B400

Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

B433

Footwell Illumination Connection (in Main Wiring Harness)

For Vehicles with Seat Ventilation
