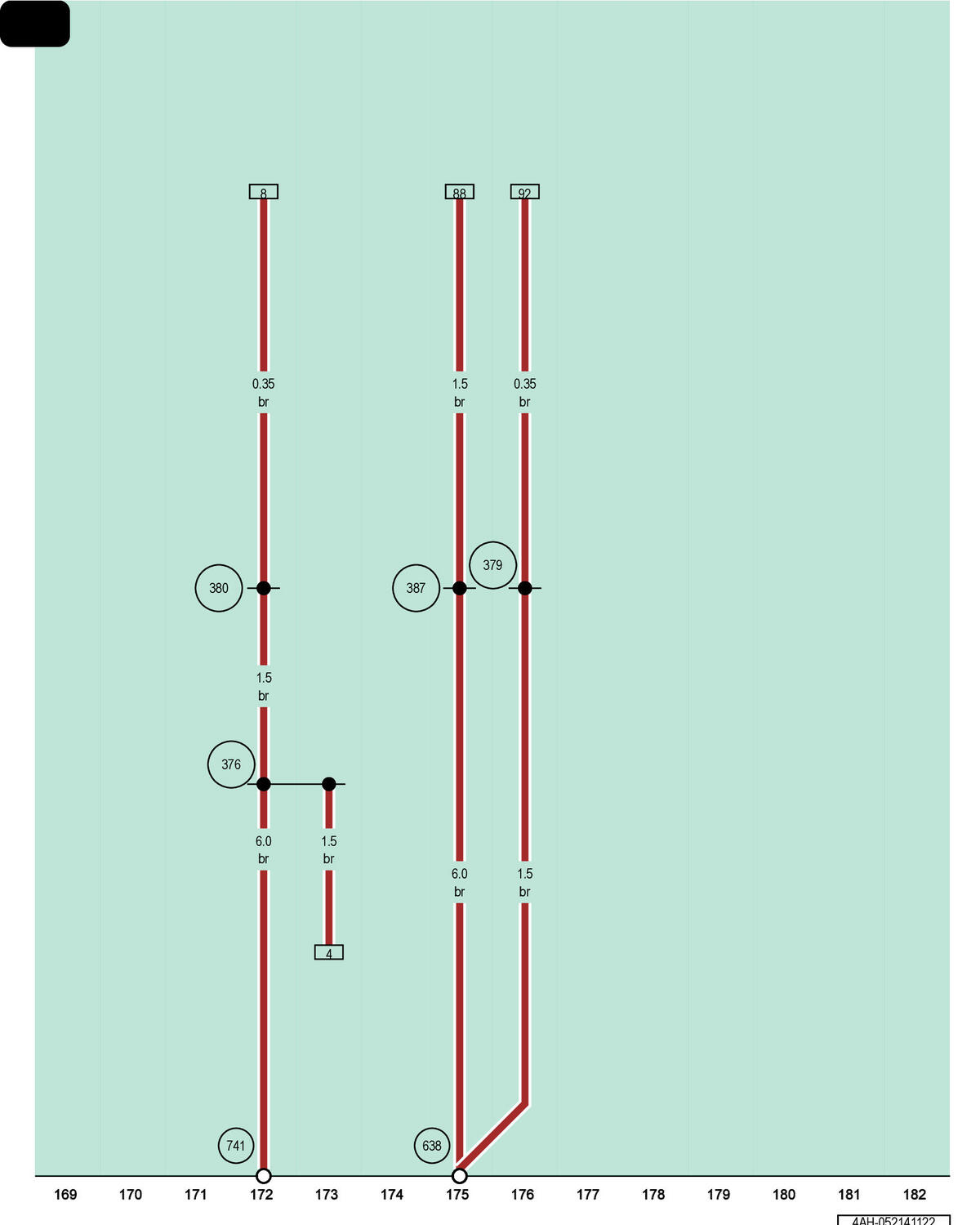

Ground Connection On Right A-Pillar, Ground Connection Under Left Front Seat

GWW4AH-052141122Courtesy of AUDI OF AMERICA, LLC

376

Ground Connection 11 (in Main Wiring Harness)

379

Ground Connection 14 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

387

Ground Connection 22 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

741

Ground Connection Under Left Front Seat
