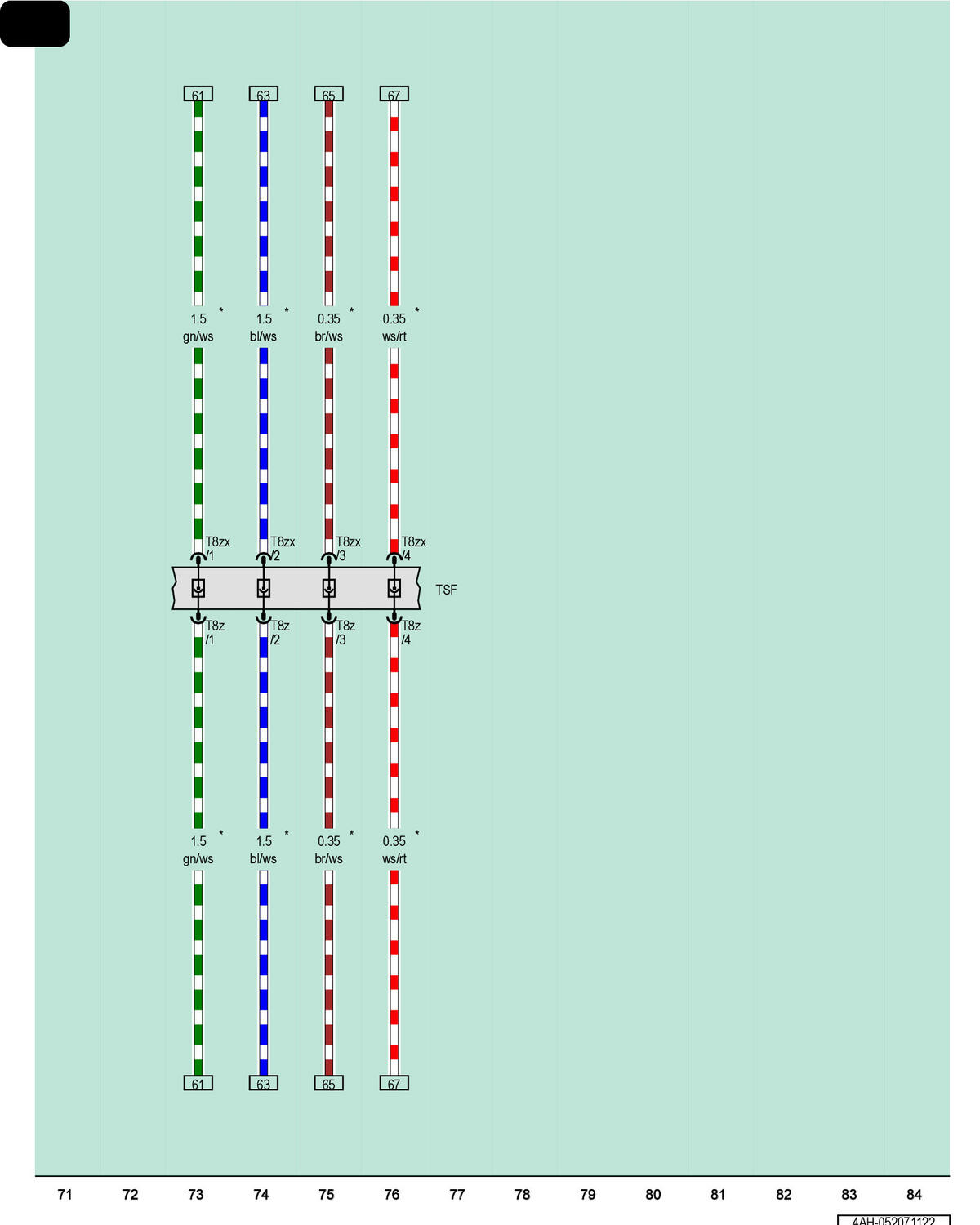

Driver Seat Backrest Coupling Point

GWW4AH-052071122Courtesy of AUDI OF AMERICA, LLC

T8z

8-Pin Connector, Black

T8zx

8-Pin Connector, Black

TSF

Driver Seat Backrest Coupling Point

*

For Vehicles with Seat Ventilation
