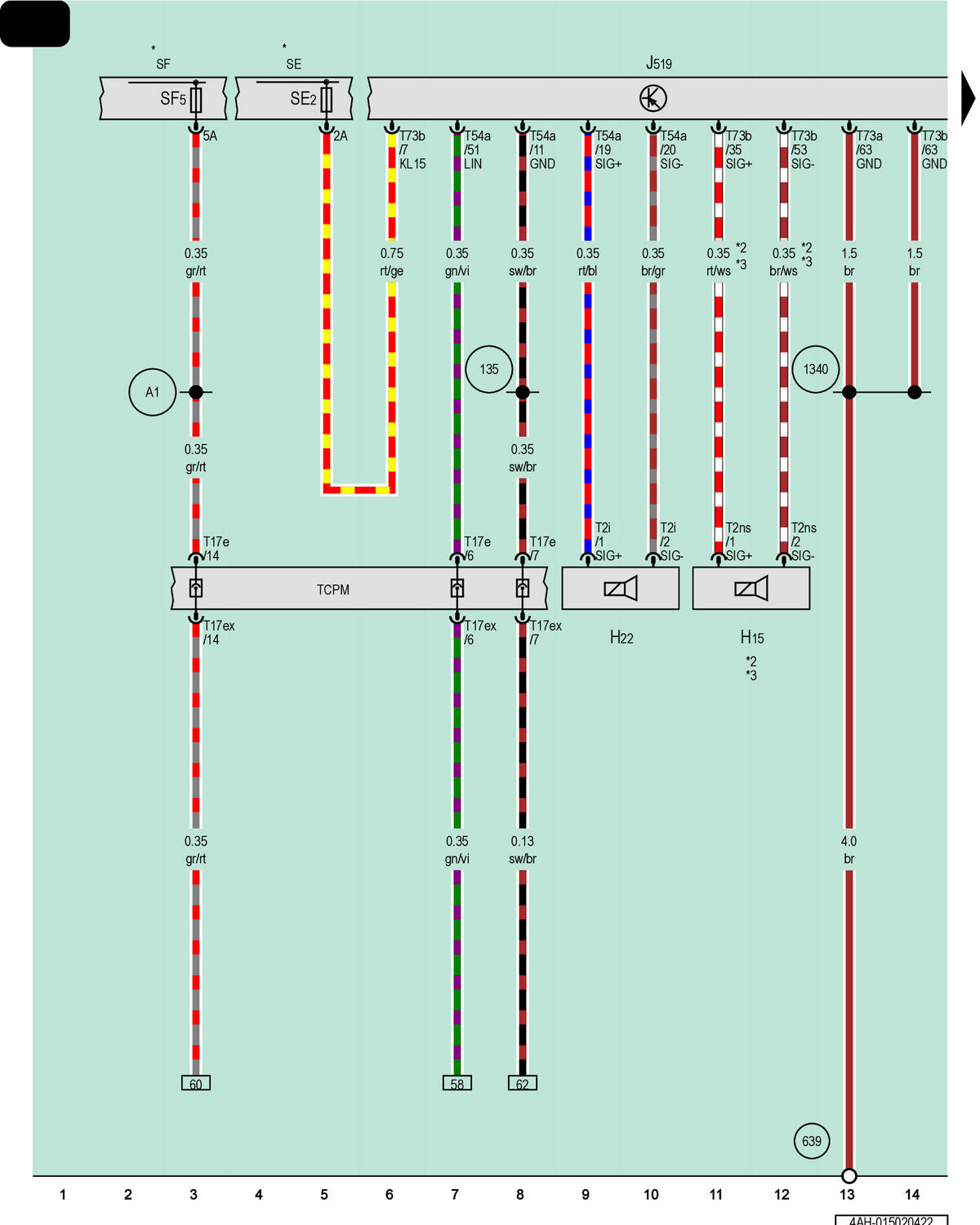

Rear Parking Aid Warning Buzzer, Front Parking Aid Warning Buzzer, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

H15

Rear Parking Aid Warning Buzzer, Near the Right C-Pillar

H22

Front Parking Aid Warning Buzzer

J519

Vehicle Electrical System Control Module

SE

Fuse Panel E

SE2

Fuse 2 on Fuse Panel E

SF

Fuse Panel F

SF5

Fuse 5 (On Fuse Panel F)

T2i

2-Pin Connector, Black

T2ns

2-Pin Connector, Black

T17e

17-Pin Connector, Black

T17ex

17-Pin Connector, Black

T54a

54-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

135

Ground Connection 2 (in Instrument Panel Wiring Harness)

639

Ground Connection on Left A-Pillar

1340

Ground Connection 42 (in Main Wiring Harness)

A1

Positive Connection 30a (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Omitted as a Running Change

*3

Sedan
